golden coating quartz short wave infrared heater lamps 2000W for 3D printer
short wave infrared heater lamps focus heat exactly where it’s needed, heat quickly and precisely controllable, efficient use of energy, easy integration into existing production facilities
Golden Goating Quartz Short Wave Infrared Heater Lamps 2000W for 3D Printer

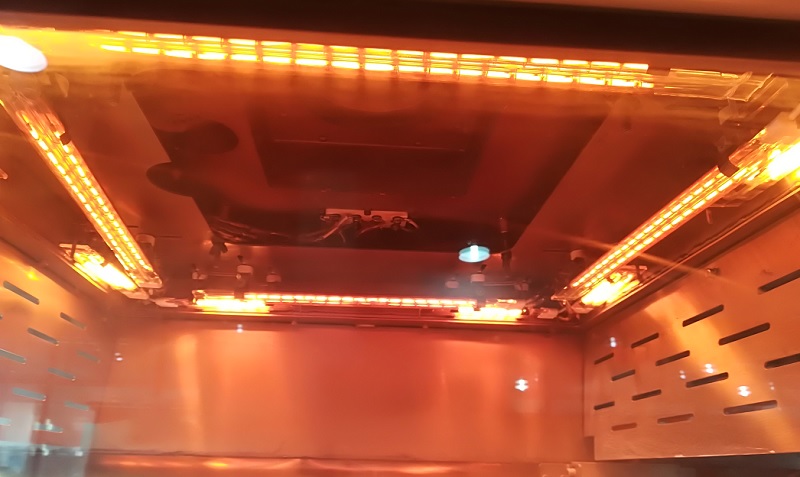

3D printing is an up-and-coming industry that requires precise substrate and environmental temperatures to obtain the best 3D print results.
Alongside the type of powder material used, heat distribution within the chamber is another crucial factor. Thus the preheating of the powder bed is a key step. QUICKLY offersa wide array of custom quartz glass infrared heater lamps to fit your specific needs, that can be precisely tailored to the material – in terms of power, form, and wavelength.
Filament construction of twin-tube heaters
Twin-tube IR emitters with different filament configurations can be made with a single-side cable connection or two sides, and different heating channels. this allows extraordinary flexibility both in terms of heated area modularity and cable position. In the picture below there are some of the most common filament configurations.
The main processing steps of vacuum infrared emitters
Safe package to protect lamps from being broken during shipping
FAQ
1. how to place the order? Let us know your required lamp specifications including lamp type, diameter, length, power, voltage, reflector...then we send you the quotation, after payment, production will be started, and after finished, they will be shipped to your side.
2. could you supply clamps for lamp installation? Yes, we will provide mounting clamps/clips for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.
3. Have an unusual design? Send us a drawing, sketch, or sample and we'll be happy to quote it. We specialize in small runs and custom designs but can be highly competitive on large orders as well.
4. How does your factory do quality control " Quality is a priority", we always keep paying more attention to QC from the material purchasing to the lamps' packing. Our product has gained CE, ROHS, and ISO9001.
5. Why coating on the quartz tube surface
QUICKLY offers infrared emitters coated with gold and white reflector, they can emit heat directly to the product. A gold or white coating on the infrared emitters reflects the infrared radiation. Consequently, the infrared radiation impinging on the product is virtually doubled, increasing the effectiveness of the heat output.
Twin tube IR emitter is made up of 8-shape high-purity clear quartz twin tube, each tube has Heating Coil of Tungsten material which runs in U shape in the tube which is filled with halogen gas.Power Density up to 150KW/m2 is achieved. Heating up and cooling down time is approximately one second. There are two standard sizes 11 mm x 23 mm and 15 mm x 33 mm in cross section for twin tube short wave IR radiators, and the maximum length available is 4000 mm
Infrared lamps radiation has been utilizd to preform heating processing in PET bottle production. The heating quality of the preform directly determines the quality and output of the PET bottle. Quickly NIR lamps have become the most trusted brand of various bottle blowing machine manufacturers because of its high heating efficiency, rapid response and stable quality.
Short wave IR emitters deliver large amounts of infrared radiation energy very quickly and instantaneously. Infrared radiation penetrates into the substrate with high efficacy compared to others modes of heating. Short wave IR heating elements has several advantages over other forms of heating including substantial power savings, high efficiency of heat delivery, compact installation and low level risk of fire hazards.
Short wave quartz infrared heaters are comprise finely coiled tungsten filament surrounded by a quartz glass and kinds of halogen gas. Twin tube IR emitter is made up of 8-shape high-purity clear quartz twin tube.Power Density up to 150KW/m2 is achieved. Heating up and cooling down time is approximately one second.
Infrared quartz emitters, thanks to their performance and efficiency, are widely used in any thermal process including Photovoltaic Industry. Short-Wave Infrared emitters produce infrared waves of around 0.75 – 1.4 microns in wavelength and operate at high temperatures above 1,300 – 2,6000C.
Short-Wave Infrared emitters produce infrared waves of around 0.75 – 1.4 microns in wavelength and operate at high temperatures above 1,300 – 2,6000C. Since these wavelengths have higher frequencies, they tend to be more transmissive and reflective.The high efficiency of this technique, however, not only follows from the absorption properties of the materials to be heated, but also in conjunction with the atmosphere.
Short-wave infrared radiation heaters have high heating power. Short wave lamps are particularly well-suited for processes that require quick start-up and shut-off since they achieve their full operating efficiency within seconds.
