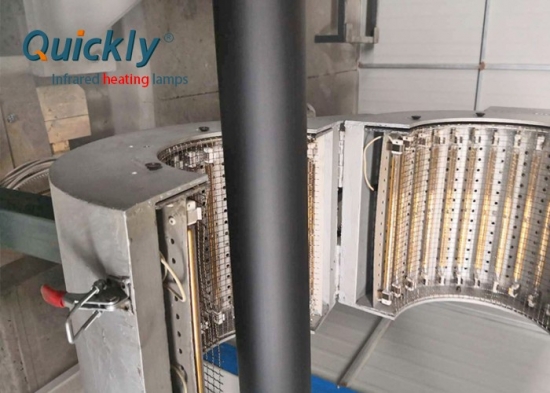

short wave lamps infrared heating module system for Pipe flaring

Short Wave Lamps Infrared Heating Module System for Pipe Flaring

The twin tube short wave lamps IR heating modules manufactured by QUICKLY are ready for immediate use:

• completely cabled
• High temperature control thermal switch,
• air or water cooling system,
• equipped with thermal sensor for high temperature
• already prepared to accommodate QUICKLY infrared quartz emitters



Quick details

During the production processing of PVC or PE pipe tube, it needs to be softened and then expanded. The required softening temperature here is 200-260°C. The gold-plated tube can quickly heat up to the required temperature, meet the requirements of the process, and speed up the softening from the original 2 minutes each cycle to only 30 seconds now, which not only improves the efficiency of the work but also shortens the softening time.

Advantages of infrared curing

Contactless process

Higher strengths

Particle purity

Absolutely air and gas impermeable

Joining of different materials

Simple machine technology, large parameter window

Wide range of IR machines

All types of tooling and emitters

Extensive know-how for all joining processes

Numerous reference

Why QUICKLY ?

1. The materials used for our lamps are at good quality approval UL testing


2. As a manufacturer of infrared lamps over 10 years history, and we have experienced workers, half of them have worked for us over 5 years


3. We are factory, so we can control the delivery date, material, quality directly
4. For any exclusive-human damage within warranty time, we will delivery the replacements within 3-5 work days once confirming


5. Safe package to protect lamps from being broken during shipping


6. we will provide you the lamp’s holder free of charge ( 2 units clamps for 1 piece lamp)


7. Various Payment methods like wire transfer, paypal, western union


8. Shipping ways provided including DHL, Fedex, TNT, UPS, air, sea

FAQ

1. how to place the order?
   Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
   quotation,after payment,production will be started, after finished, they will be shipped to your side.


2. Why Quartz Glass as the one main of material?
   The choice of quartz glass is not a coincidence: this extraordinary material is totally transparent at IR radiation, can withstand constant
   working temperatures of more than 1000°C and it is resistant to chemical corrosion.


3. could you supply clamps for lamp installing ?
   Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.


4. Have an unusual design?
   Send us a drawing, sketch, or sample and we'll be happy to quote it.
   We specialize in small runs and custom designs, but can be highly competitive on large orders as well.


5. How does your factory do quality control
   " quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gained CE, ROHS, ISO9001.


6. why coating on quartz tube surface ?
   QUICKLY offers infrared emitters which coated with gold and white reflector , they can emit heat directly to the product. A gold or white coating on the infrared emitters reflects the infrared radiation. Consequently the infrared radiation impinging on the product is virtually doubled, increasing the effectiveness of the heat output. The reflection efficiency of gold coating is higher than white coating, while for the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as reflector because the temperature resistance is up to 1000°C . In addition to 180° (half-tube) coating, we also manufacture 270° coating or other customer specified degrees.
