Fast Infrared paint quick drying curing system for cables

Fast Infrared paint quick drying curing system for cables

Product description

In the production process of large-scale cables, it is necessary to apply a colored paint on the cable conductor. And curing drying process is particularly vital for the period, as the coating needs to be heated to 300 degrees Celsius during the rapid production.

We started to do experiments after receiving client’s requests, and found that the short-wave infrared lamp with nano white has a good curing effect, which can meet the temperature requirements of paint curing.

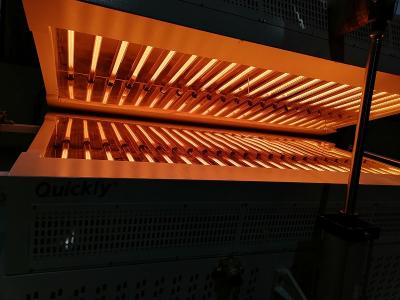

Each infrared heating module is made up of 6pcs white reflector short wave infrared emitters, each emitter rates 3KW. It meets the production speed of 7 meters per minute, which greatly improves the production efficiency, realizing 30% energy saving, at the same time, it improves the quality of the product.

Advantages of infrared curing

Contactless process

Higher strengths

Particle purity

Absolutely air and gas impermeable

Joining of different materials

Simple machine technology, large parameter window

Wide range of IR machines

All types of tooling and emitters

Extensive know-how for all joining processes

Numerous reference

Why QUICKLY ?

1. The materials used for our lamps are at good quality approval UL testing


2. As a manufacturer of infrared lamps over 10 years history, and we have experienced workers, half of them have worked for us over 5 years


3. We are factory, so we can control the delivery date, material, quality directly
4. For any exclusive-human damage within warranty time, we will delivery the replacements within 3-5 work days once confirming


5. Safe package to protect lamps from being broken during shipping


6. we will provide you the lamp’s holder free of charge ( 2 units clamps for 1 piece lamp)


7. Various Payment methods like wire transfer, paypal, western union


8. Shipping ways provided including DHL, Fedex, TNT, UPS, air, sea

FAQ

1. how to place the order?
   Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
   quotation,after payment,production will be started, after finished, they will be shipped to your side.


2. Why Quartz Glass as the one main of material?
   The choice of quartz glass is not a coincidence: this extraordinary material is totally transparent at IR radiation, can withstand constant
   working temperatures of more than 1000°C and it is resistant to chemical corrosion.


3. could you supply clamps for lamp installing ?
   Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.


4. Have an unusual design?
   Send us a drawing, sketch, or sample and we'll be happy to quote it.
   We specialize in small runs and custom designs, but can be highly competitive on large orders as well.


5. How does your factory do quality control
   " quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gained CE, ROHS, ISO9001.


6. why coating on quartz tube surface ?
   QUICKLY offers infrared emitters which coated with gold and white reflector , they can emit heat directly to the product. A gold or white coating on the infrared emitters reflects the infrared radiation. Consequently the infrared radiation impinging on the product is virtually doubled, increasing the effectiveness of the heat output. The reflection efficiency of gold coating is higher than white coating, while for the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as reflector because the temperature resistance is up to 1000°C . In addition to 180° (half-tube) coating, we also manufacture 270° coating or other customer specified degrees.
