We develop all infrared modules individually based on material and application so that the infrared drying modules fit smoothly into your production processes and your products are dried efficiently, quickly, and gently at the same time.

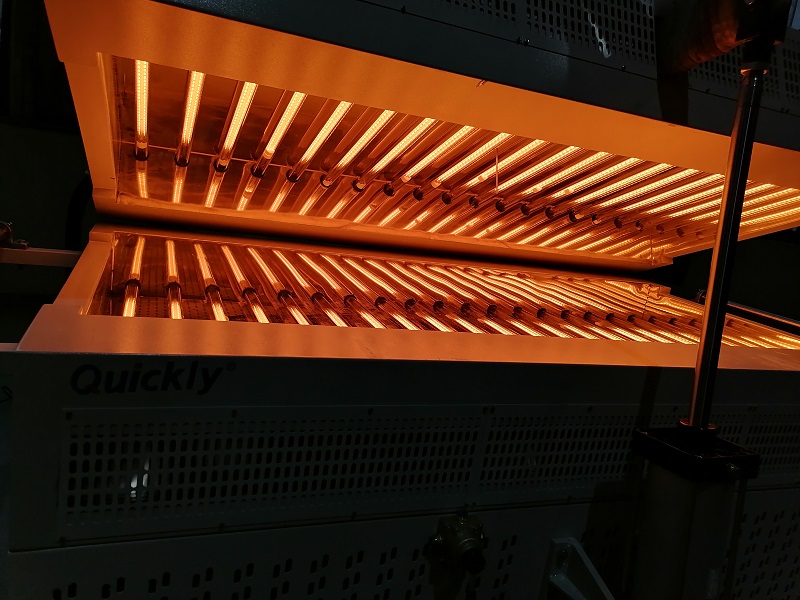

The twin-tube short wave lamps IR heating modules manufactured by QUICKLY are ready for immediate use:
completely cabled
High-temperature control thermal switch,
air or water cooling system
equipped with a thermal sensor for high temperature
already prepared to accommodate QUICKLY infrared quartz emitters

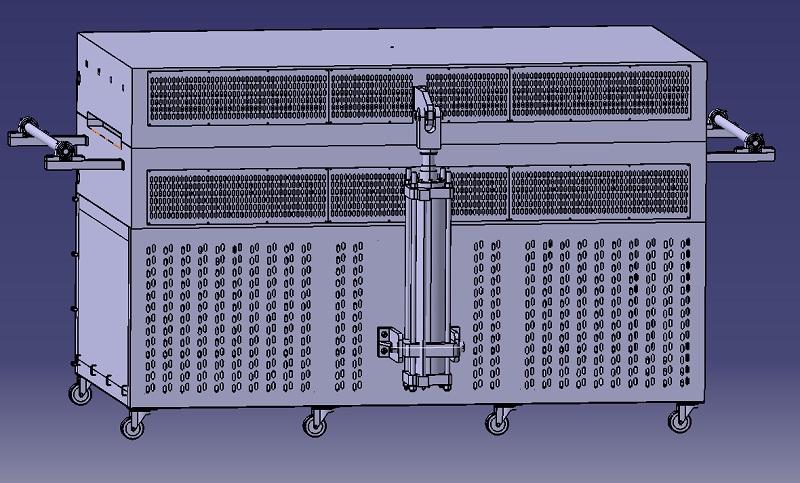

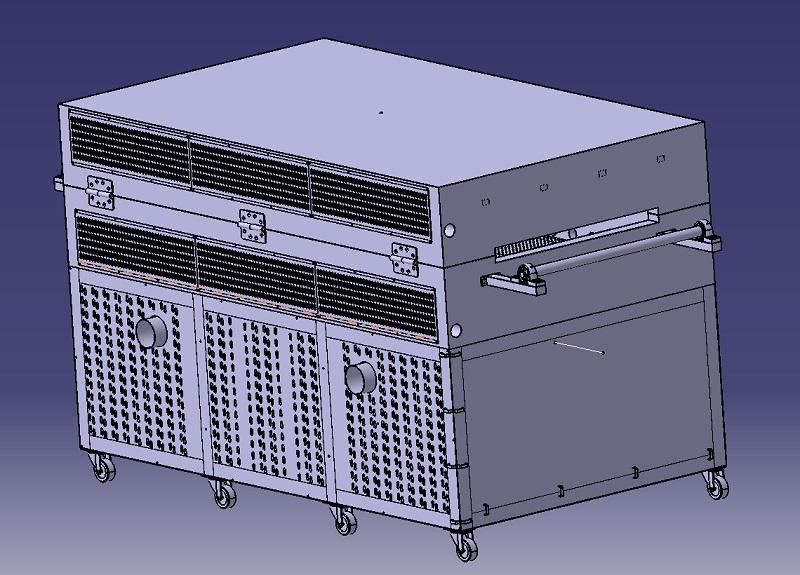

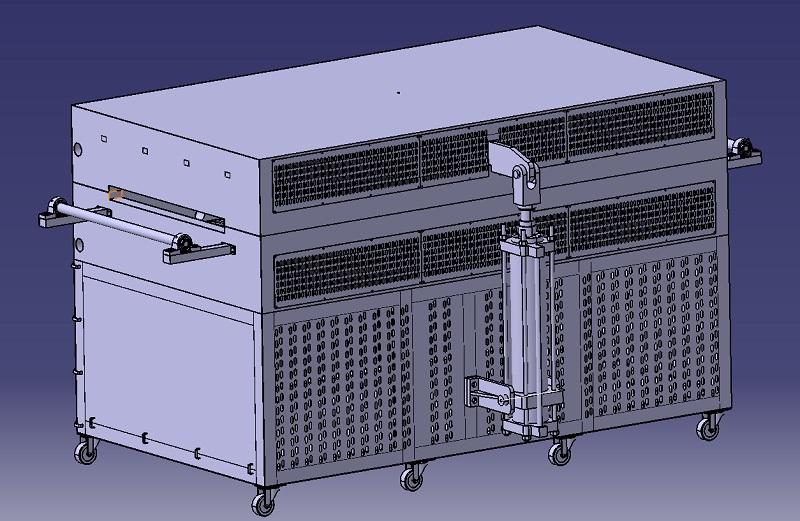

Quick details
IR Heating Oven Length
2000MM
Industrial Oven Width
1100MM
Inner Diameter
1275MM
Watts
36KW
Short wave IR emitter
23*11*930MM 220V 1KW
Heating lamps quantity
36PCS
Why QUICKLY?
The materials used for our lamps are of good quality approved UL testing
As a manufacturer of infrared lamps over 10 years history, and we have experienced workers, half of them have worked for us for over 5 years

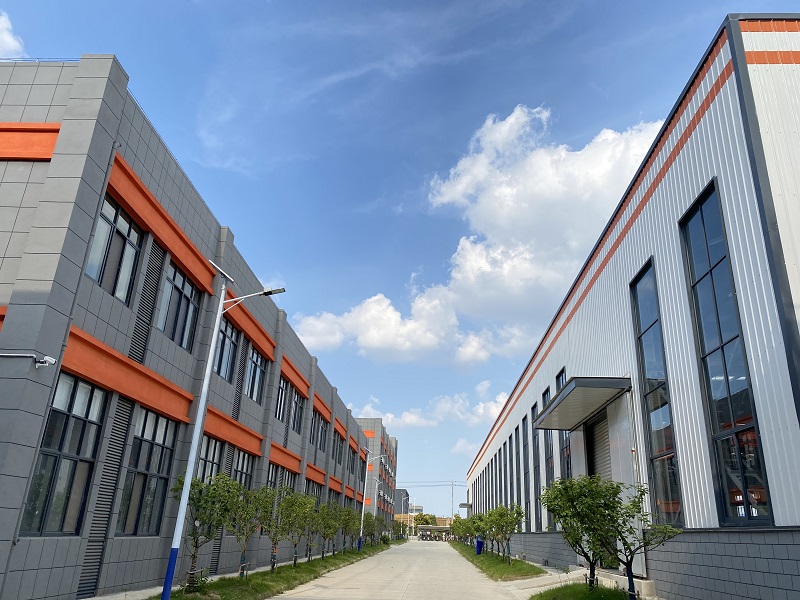

We are a factory, so we can control the delivery date, material, and quality directly
For any exclusive-human damage within warranty time, we will deliver the replacements within 3-5 work days once confirming
Safe package to protect lamps from being broken during shipping
we will provide you with the lamp’s holder free of charge ( 2 units clamps for 1 piece lamp)
Various Payment methods like wire transfer, Paypal, western union
Shipping ways provided including DHL, FedEx, TNT, UPS, air, sea
FAQ
how to place the order? Let us know your required lamp specifications including lamp type, diameter, length, power, voltage, and reflector...then we send you the quotation, after payment, production will be started, and after finished, they will be shipped to your side.
Why is Quartz Glass the one main material? The choice of quartz glass is not a coincidence: this extraordinary material is totally transparent to IR radiation, and can withstand constant working temperatures of more than 1000°C and it is resistant to chemical corrosion.
could you supply clamps for lamp installation? Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.
Have an unusual design? Send us a drawing, sketch, or sample and we'll be happy to quote it. We specialize in small runs and custom designs but can be highly competitive on large orders as well.
How does your factory do quality control? " Quality is a priority", we always keep paying more attention to QC from the material purchasing to the lamps' packing. Our product has gained CE, ROHS, and ISO9001.
Each infrared lamp bead can be controlled by the single-chip microcomputer to control its power output, so that the temperature of each area is close to same, and the temperature error can be ±1 °C, which greatly improves the quality of the product.
Anhui Quickly's infrared modules are the ideal solution for the application of infrared heat technology. They save the user design costs and time and are substantially less expensive than the complete infrared systems.
Quartz tube infrared heater lamp are sold as individual heat sources or wired together in multiple emitter cassettes also known as IR Modules. QUICKLY focuses on custom infrared solutions, but we have also developed a series of IR heating system.
Fast Infrared paint quick drying curing system for cables production process, realizing 30% energy saving, at the same time, it improves the quality of the product.
Medium wave IR emitters are excellent for surface heating and for drying coatings paint, dyes, lacquers, adhesives and in the processing of plastic sheet and films. Because of their long life, medium wave quartz infrared heaters perform extremely well in continuous processes.
Medium Wave Emitters generally consist of a resistance winding enclosed in an un-evacuated quartz tube. Medium wave is generally characterized by the presence of orange or red light. Each of these wave lengths and elements have there own particular advantages and disadvantages when solving a particular heating application
Short wave IR emitters deliver large amounts of infrared radiation energy very quickly and instantaneously. Infrared radiation penetrates into the substrate with high efficacy compared to others modes of heating. Short wave IR heating elements has several advantages over other forms of heating including substantial power savings, high efficiency of heat delivery, compact installation and low level risk of fire hazards.
