infrared heating module system for powder curing oven

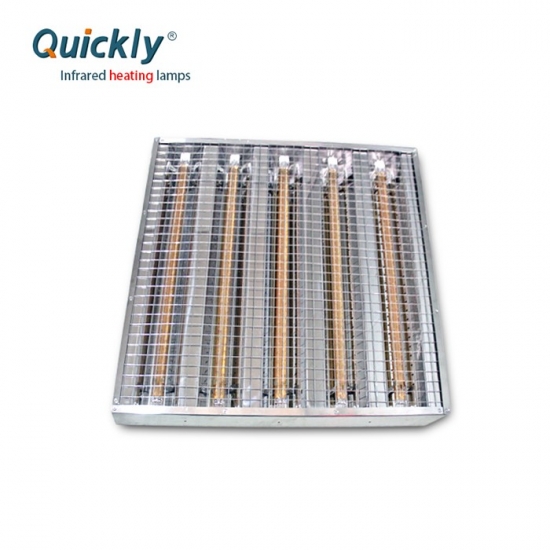

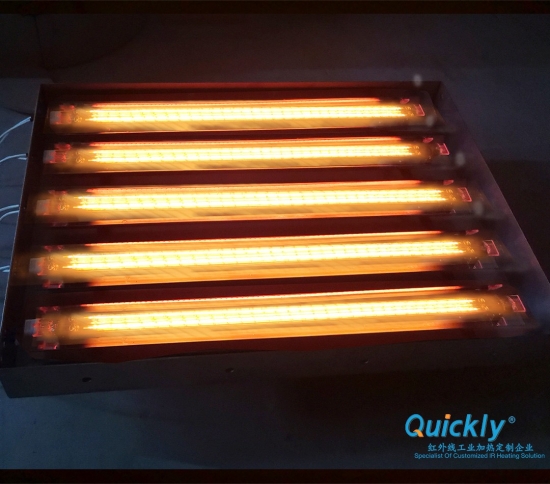

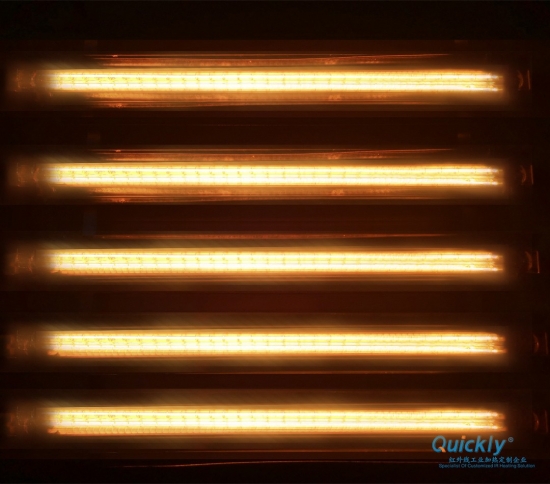

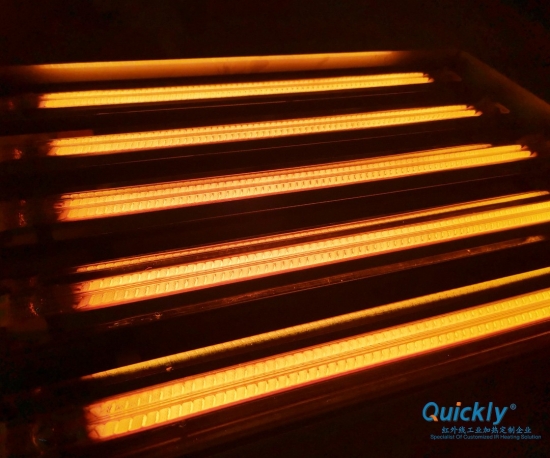

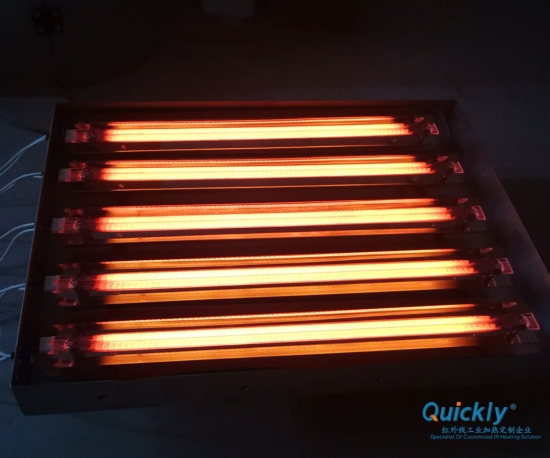

Customized Infrared Heating Module System for Industrial Heating and Drying Process

The IR modules manufactured by QUICKLY are ready for immediate use:

• completely cabled
• High temperature control thermal switch
• air or water cooling system
• equipped with thermal sensor for high temperature
• already prepared to accommodate QUICKLY infrared quartz emitters

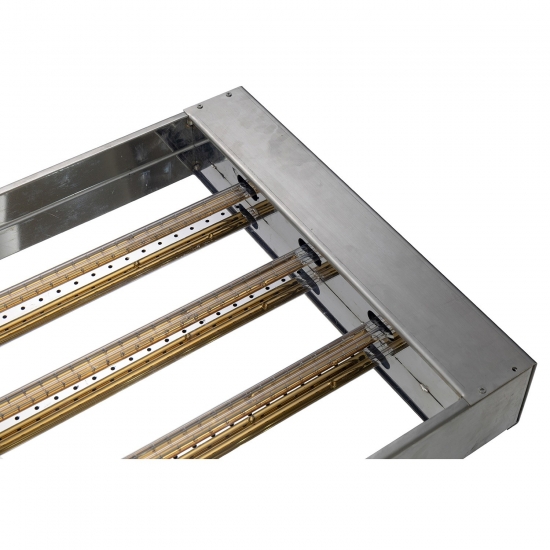

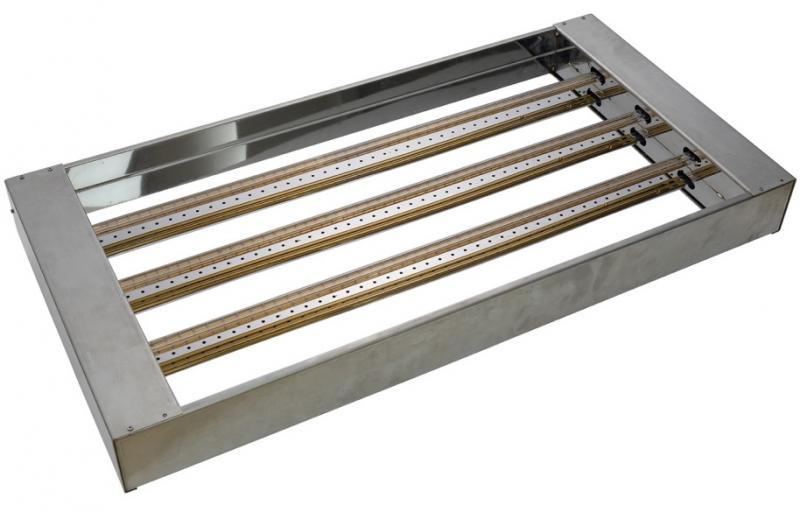

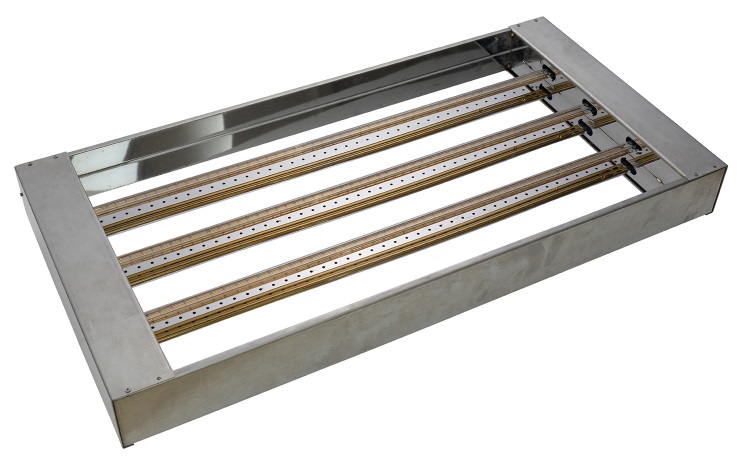

Infrared heating system with reflective mirror for concentrated heating

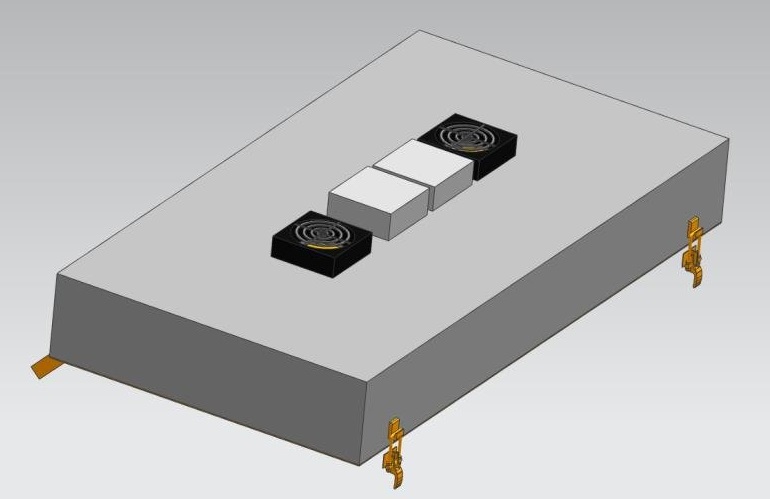

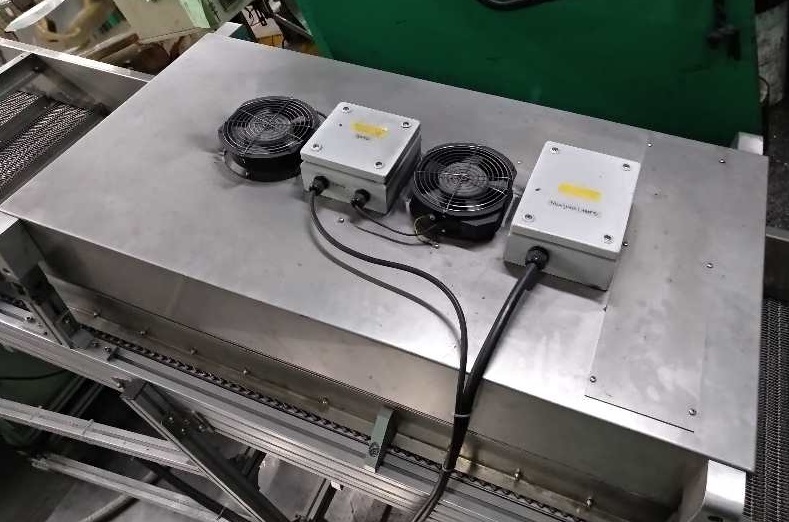

Infrared modules installed with fans for uniform heating out of better heating performance and cooling out of lasting lifespan

Infrared heating module for solar cell stringer

Advantages of Infrared Radiation

1. energy saving: Infrared radiation unlike convection or conduction, dose not rely on any medium to transfer heat from infrared source to the object being heated, heat directly to the object

2. Time saving: no need medium transferring, quick response,can reach working temperature more quickly, heating by infrared emitters shortens process time and increases production rates

3. space saving : small and customized size and shape

4. cost saving: low capital cost, easy installation, reliable operation, low maintenance costs and efficient use of energy.

5. Better product quality: Controllable, predictable heating reduces wastage and promotes products quality

6. environment protection:Clean, and no any pollution released to the surroundings

Typicall applications

• screen printing glass
• glass lamination
• laminated glass cutting
• mirror paint drying
• Curing Painted Surfaces
• Preheating Plastics
• Curing Powder Coatings
• Drying / heat setting textiles after dyeing or printing
• Supplemental heating
• Drying or inks for printing and silk-screening
• Preheating and curing wood coating
• Glass Curing
• Shrink Packaging Machines.
• Drying Textiles.
• Rubber Curing.
• Drying of paints
• Processing Plastic foils and sheet

Why QUICKLY ?

1.The materials used for our lamps are at good quality approval UL testing

2. As a manufacturer of infrared lamps over 10 years history, and we have experienced workers, half of them have worked for us over 5 years

3. We are factory, so we can control the delivery date, material, quality directly

4. For any exclusive-human damage within warranty time, we will delivery the replacements within 3-5 work days once confirming

5. Safe package to protect lamps from being broken during shipping

6. We will provide you the lamp’s holder free of charge ( 2 units clamps for 1 piece lamp）

7. Various Payment methods like wire transfer, paypal, western union

8. Shipping ways provided including DHL, Fedex, TNT, UPS, air, sea

FAQ

1. how to place the order?
Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
quotation,after payment,production will be started, after finished, they will be shipped to your side

2. Why Quartz Glass as the one main of material?
The choice of quartz glass is not a coincidence: this extraordinary material is totally transparent at IR radiation, can withstand constant
working temperatures of more than 1000°C and it is resistant to chemical corrosion.

3. could you supply clamps for lamp installing ?
Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.
Have an unusual design?

4. Send us a drawing, sketch, or sample and we'll be happy to quote it.
We specialize in small runs and custom designs, but can be highly competitive on large orders as well.

5. How does your factory do quality control
" quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gained CE, ROHS, ISO9001.

6. why coating on quartz tube surface ?

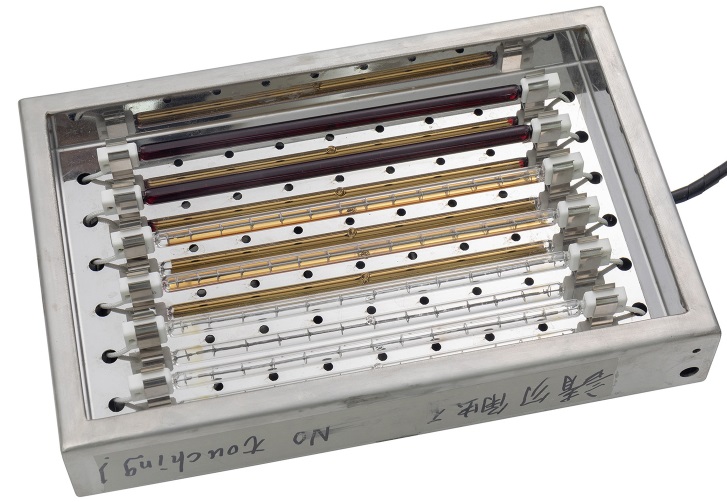

QUICKLY offers infrared emitters which coated with gold and white reflector , they can emit heat directly to the product. A gold or white coating on the infrared emitters reflects the infrared radiation. Consequently the infrared radiation impinging on the product is virtually doubled, increasing the effectiveness of the heat output. The reflection efficiency of gold coating is higher than white coating, while for the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as reflector because the temperature resistance is up to 1000°C . In addition to 180° (half-tube) coating, we also manufacture 270° coating or other customer specified degrees.
