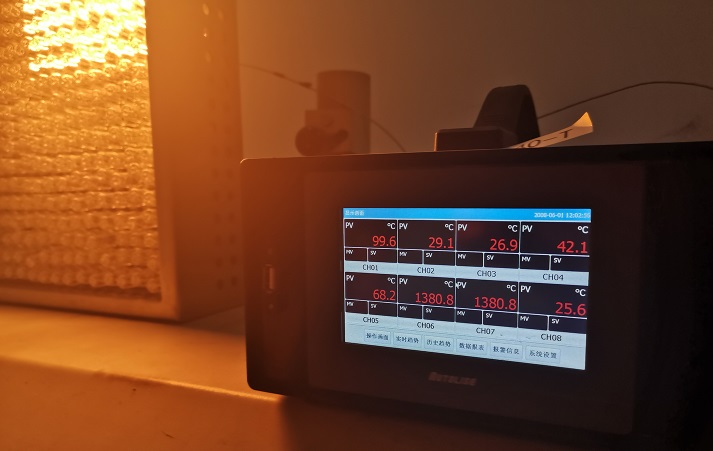

Each infrared lamp bead can be controlled by the single-chip microcomputer to control its power output, so that the temperature of each area is close to same, and the temperature error can be ±1 °C, which greatly improves the quality of the product.
Brand:
QuicklyItem no.:
QIR0174Product origin:
ChinaLead Time:
5-7 work daysSpot Lamps Infrared Lamp Bead IR Heating Module for Precise Uniform Heating
| Demension of Heating Unit | 800*600*100MM |
| Size of Heating Area | 700*500MM |
| Quantity of spot lamps | 315PCS |
| Power | 31.5KW |
| Infrared lamp bead / spot lamp | Dia10 *L30 MM |
| heating temperature | 400C degree |

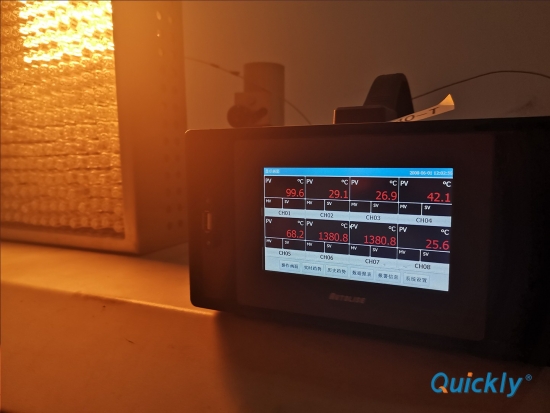

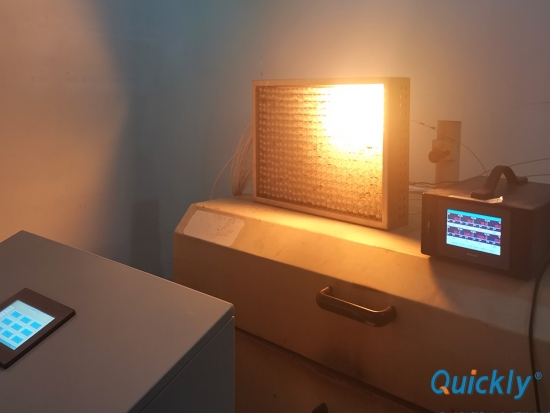

In the production process of electronic and semiconductor products, precise and uniform temperature are required because of the characteristics of materials. Quickly designs a heating module consists of 315 infrared lamp beads for directional heating objects. And each infrared lamp bead can be controlled by a single chip microcomputer, as a result, the temperature differences at different heating area can only be ±1°C, which greatly improves the quality of the product, and the temperature control is close to perfect.
 |
 |

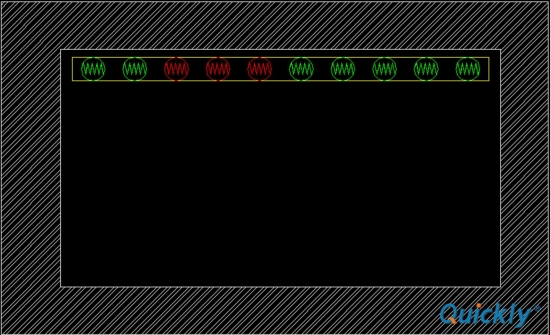

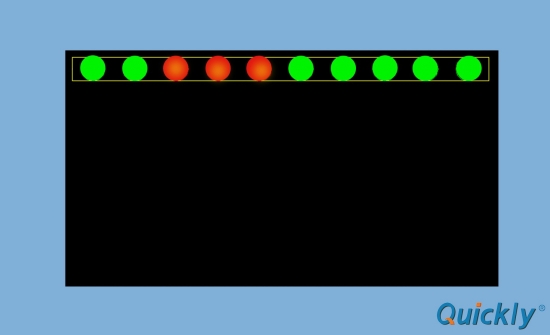

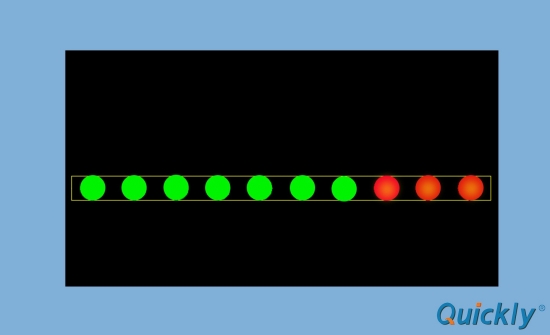

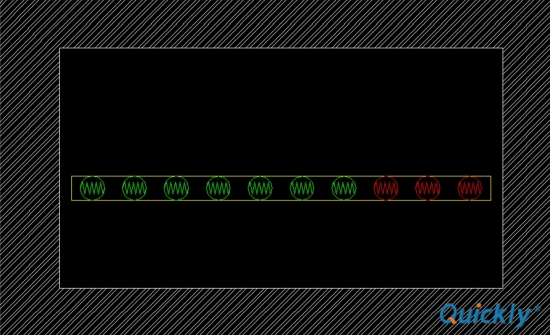

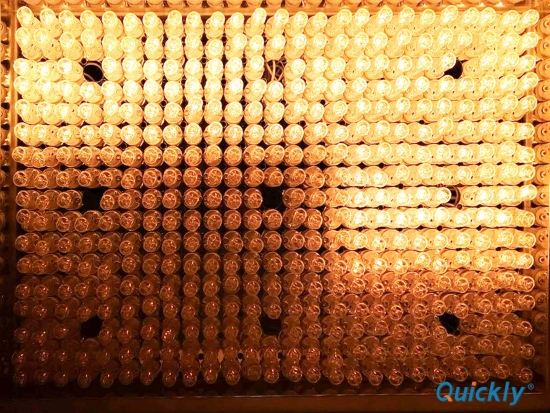

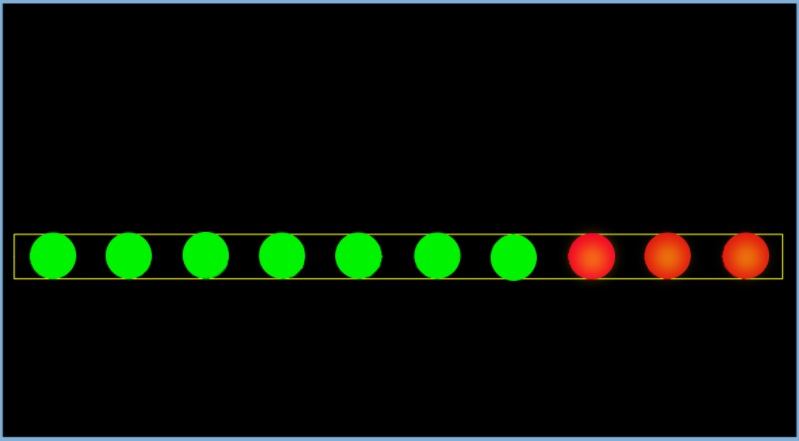

The whole heating infrared heating tube is divided into multiple monomers, and these monomers can be controlled individually, so that it can really be heated whereever it needs to be.

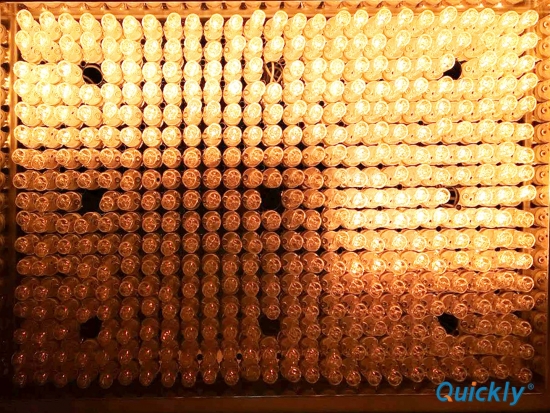

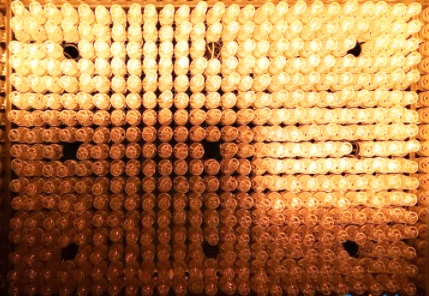

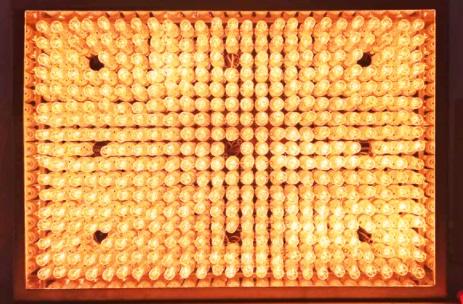

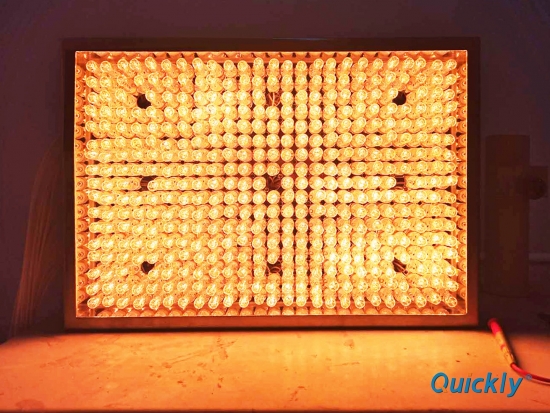

The infrared heating module is made up from multiple heating spot lamps
1. Precise and uniform heating out of the individual controller
2. Energy saving and consumption reduction, radiation and heating will only focus on the required heated area
3. Simple structure and space saving, no need for large-scale thermal insulation and structural support
4. They are complete and ready for the operation.
5. This provides advantages for both the, user while installing in to the existing systems and for the planing / project engineers.
6. Infrared modules can be individually regulated, controlled and ventilated.
Anhui Quickly's infrared modules are the ideal solution for the application of infrared heat technology. They save the user design costs and time and are substantially less expensive than the complete infrared systems.
