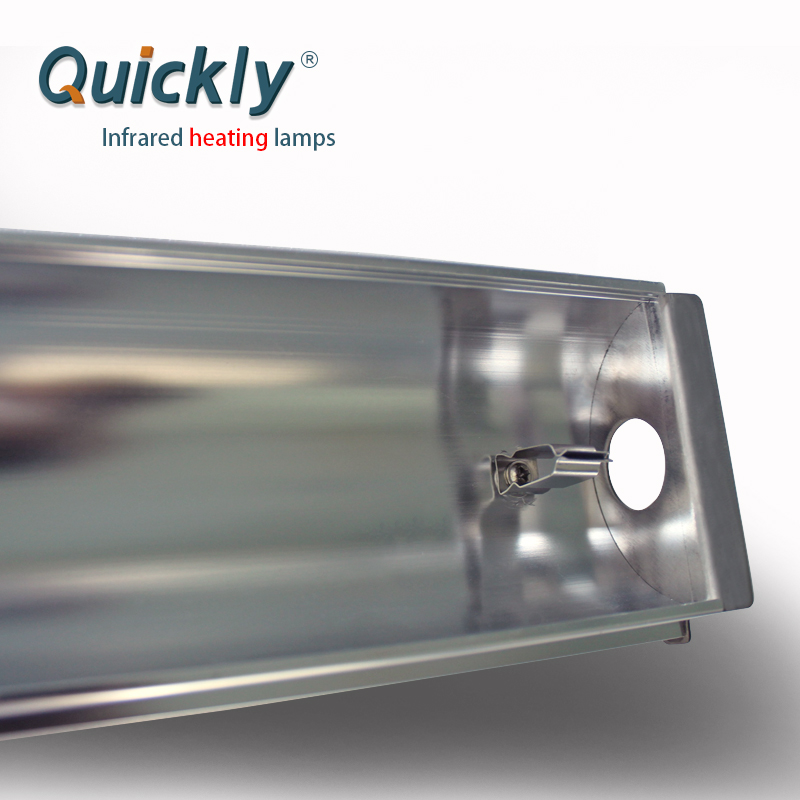

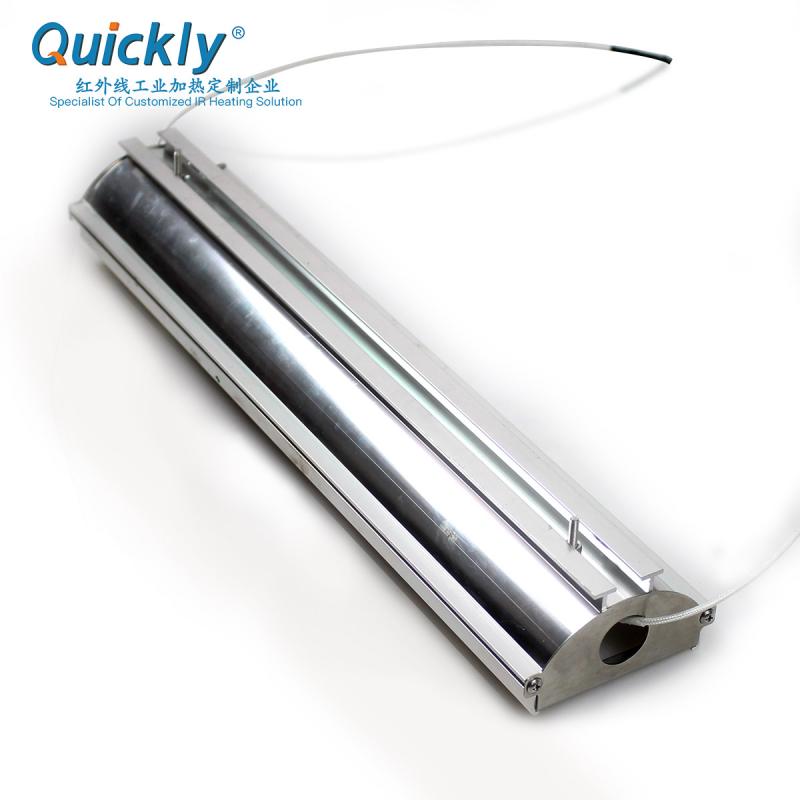

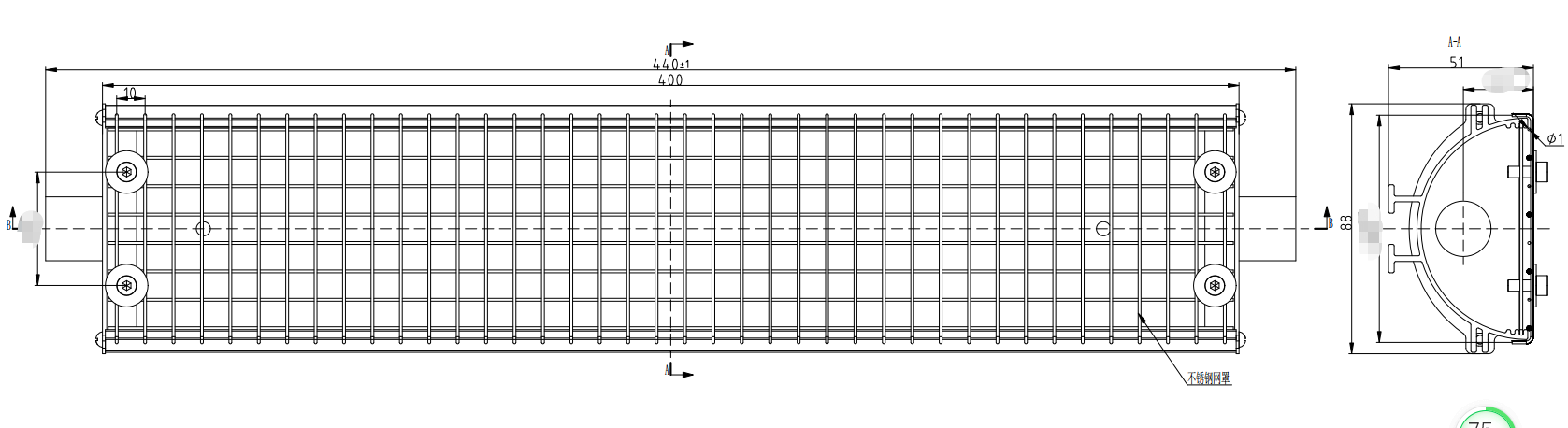

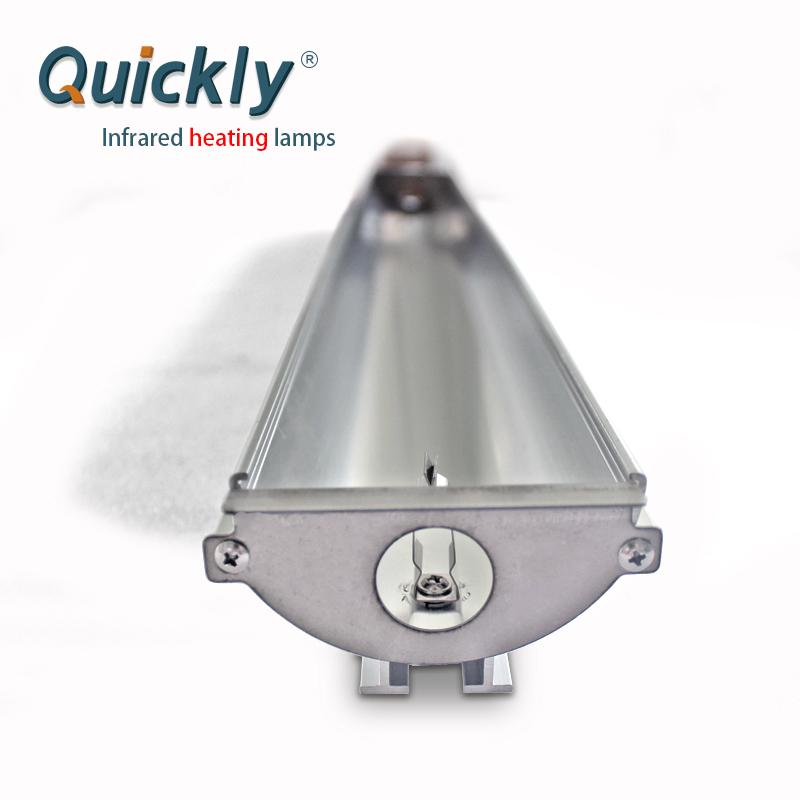

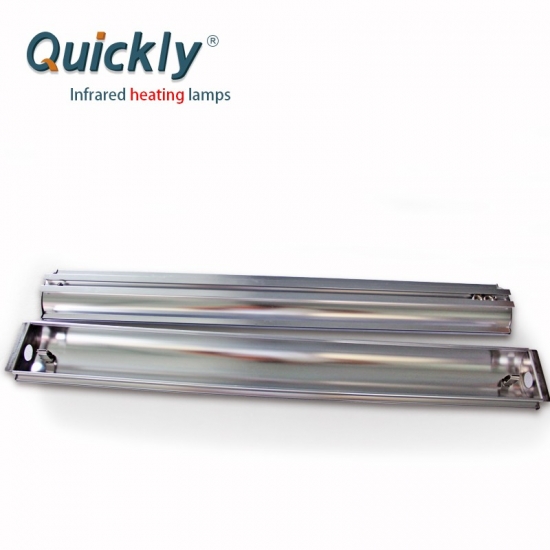

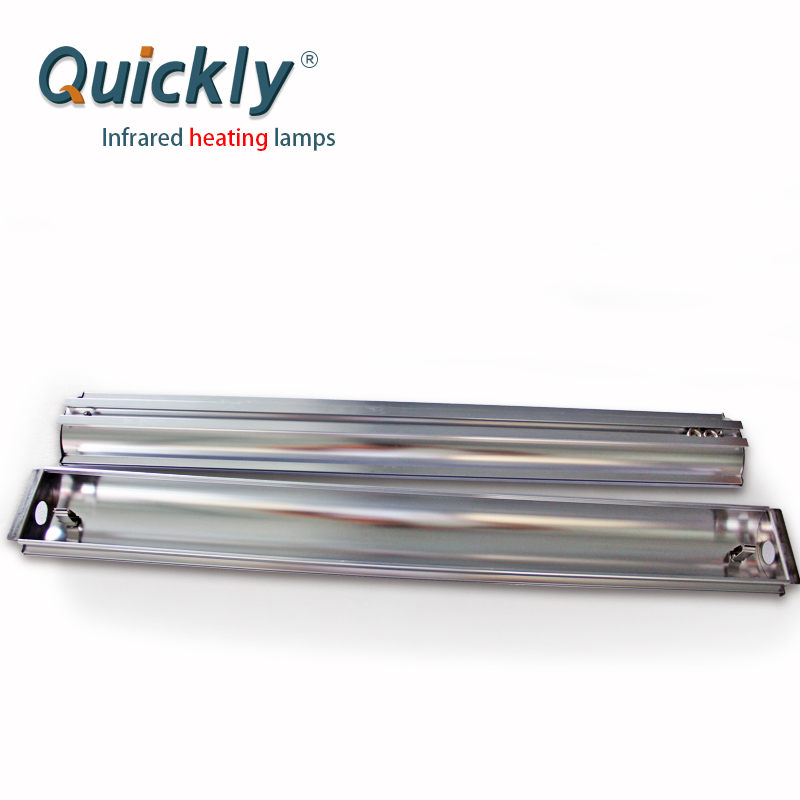

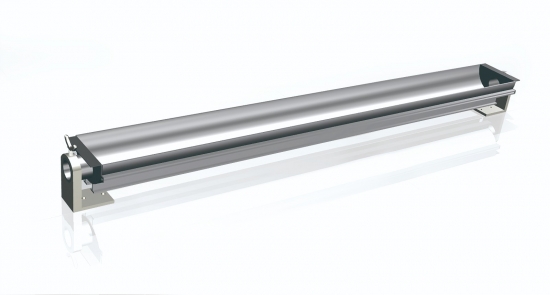

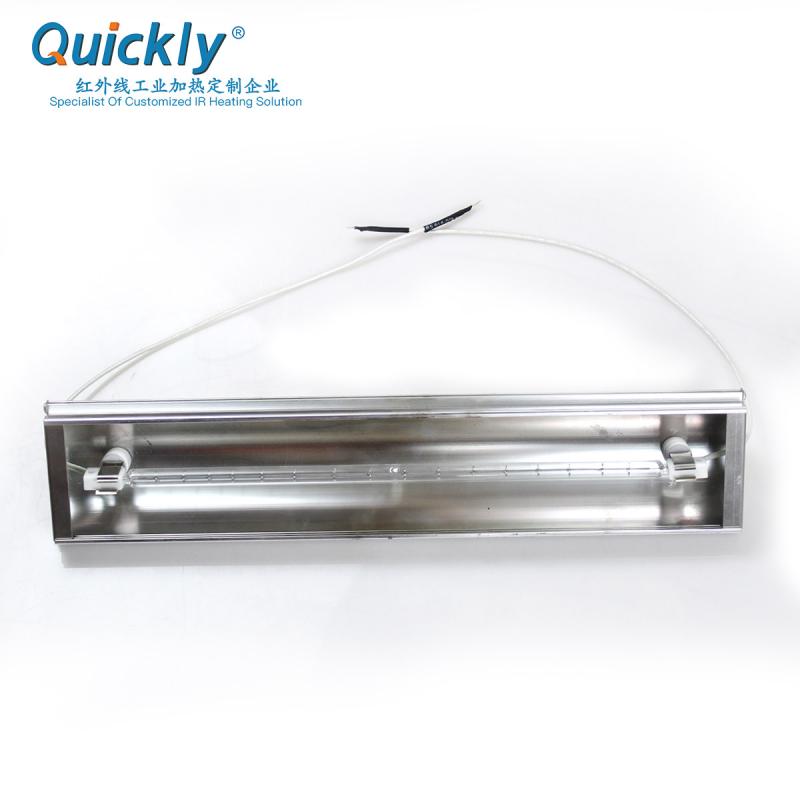

Aluminum-Magnesium Alloy Metal Shade / House/ Metal Reflector

This Item is mainly used for Twin tube Twin Tube Medium Wave IR heater lamp , if the lamp length is over 1800mm, which we may recommend you use three support holders to have one hold in the middle of the twin tube heater. Usually we provide you 2 pcs per lamp for free.

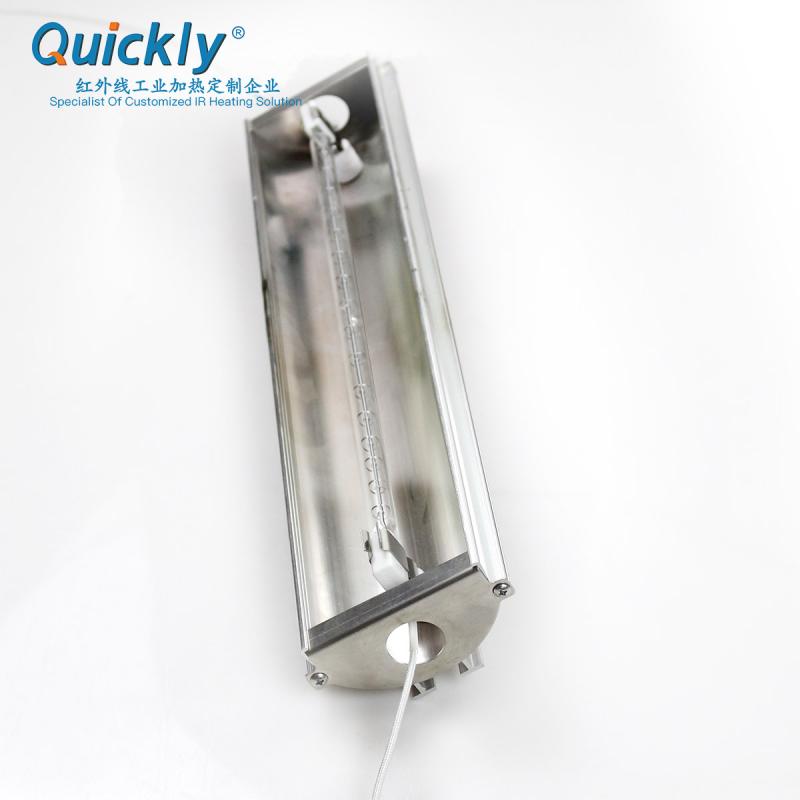

This product is used to install single tube IR heating lamp, especially for short wave IR heating lamp with SK end ceramic caps. Usually we provide you 2 clips each lamp free of charge.

Fast response medium wave infrared emitters are heaters that fall between the short and standard medium-wave. Utilizing the best of both wavelength. Response times as fast as short wave, with a maximum power output of 120 kW/m2 and lengths up to 4 meters. The heaters is suitable for drying processes because of transferring heat at a medium wave spectrum (2-4micron) .

Medium wave infrared heaters produce infrared waves of around 2.6-3.5um and operate at 500 – 1,300C degree. These wavelengths have lower frequencies, which are better absorbed by objects. Medium wave IR emitters are excellent for surface heating and for drying coatings paint, dyes, lacquers, adhesives and in the processing of plastic sheet and films. Because of their long life, medium wave quartz infrared heaters perform extremely well in continuous processes. Also it is slower in response to changes in process requirement as compared to the short-wavelength lamps and are slower to heat up and cool down.

Twin tube IR emitter is made up of 8-shape high-purity clear quartz twin tube, each tube has Heating Coil of Tungsten material which runs in U shape in the tube which is filled with halogen gas.Power Density up to 150KW/m2 is achieved. Heating up and cooling down time is approximately one second. There are two standard sizes 11 mm x 23 mm and 15 mm x 33 mm in cross section for twin tube short wave IR radiators, and the maximum length available is 4000 mm

Infrared heating is the best choice for semiconductors processing as IR has rapid heating and cooling abilities which means the elimination of heating overspill as well as significant energy savings. No contact is needed infrared can operate in a vacuum, within a gas flow or in the air.

Infrared heating and drying is an important part used in textile processing,Quickly can supply all carbon fiber infrared lamp with different length,wattage,and voltage combination for industrial heating systems.Nomatter what kind of replaceable infrared emitters you need,just contact us and get customized products.

short wave infrared heater lamps focus heat exactly where it’s needed, heat quickly and precisely controllable, efficient use of energy, easy integration into existing production facilities
