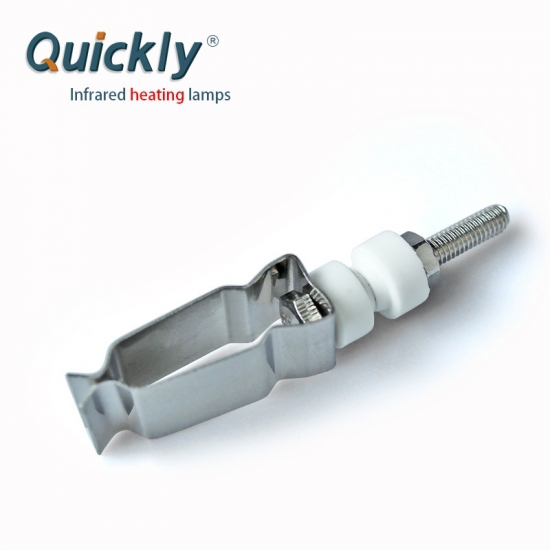

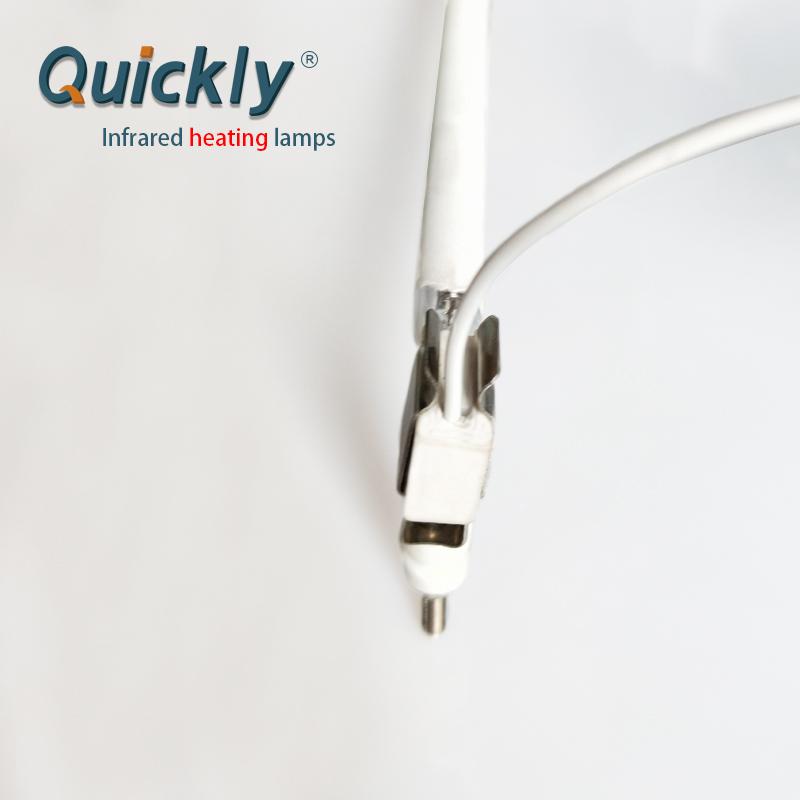

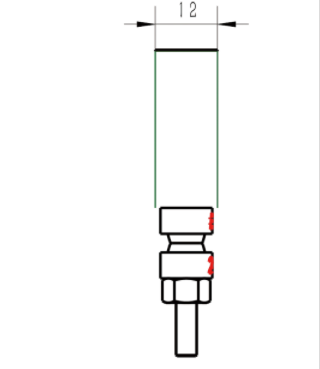

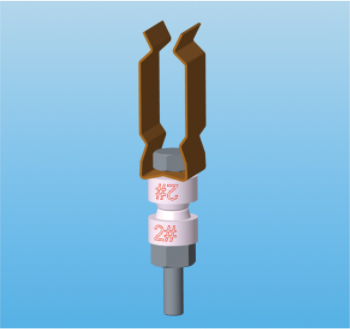

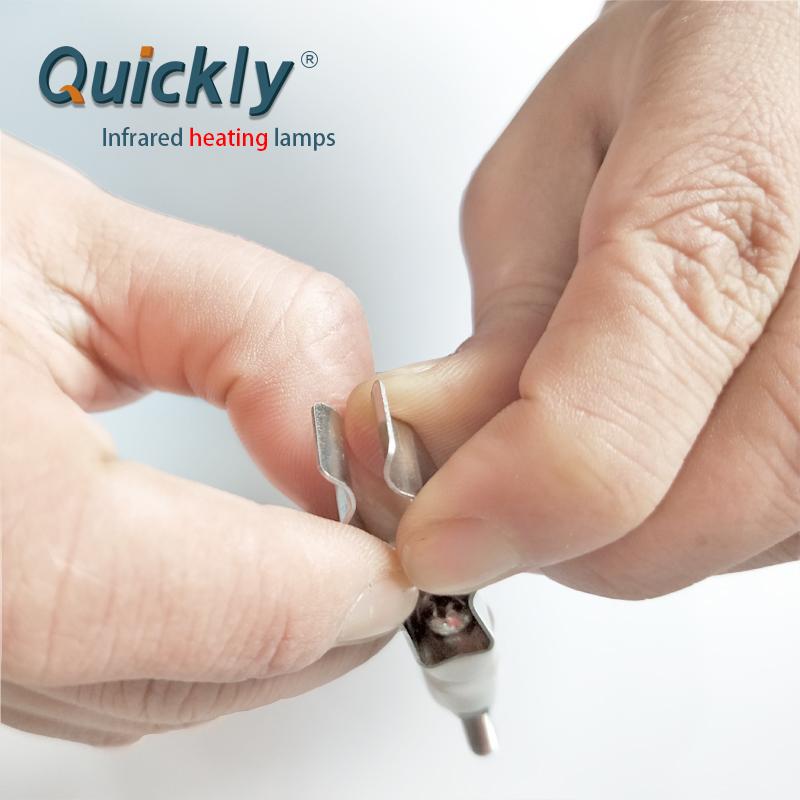

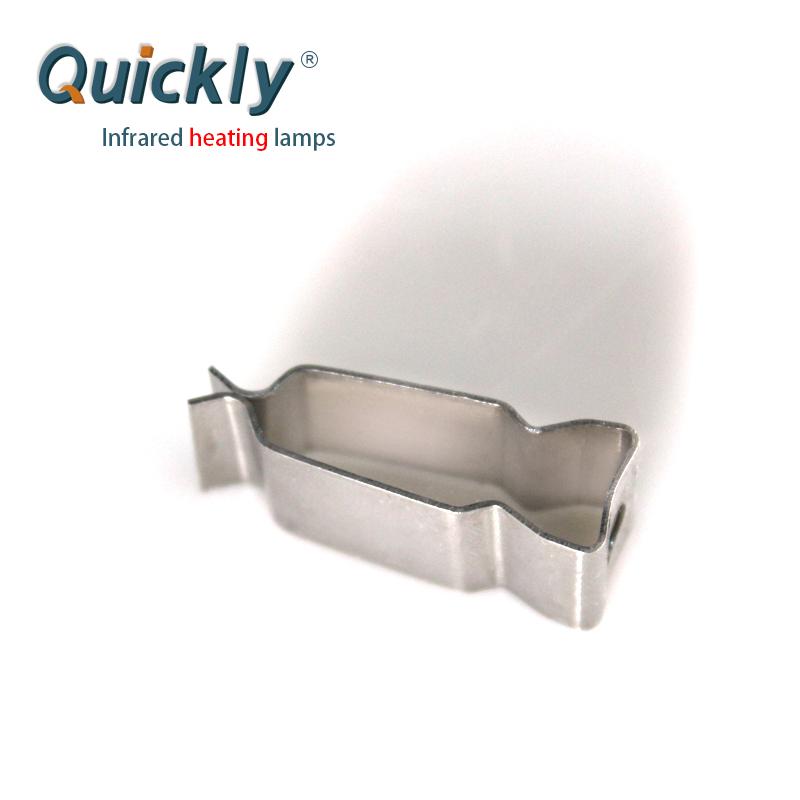

SK15 End Base Infrared Tube Heating Element Mounted Clips Infrared Emitters Holder

This Item is mainly used for Twin tube Twin Tube Medium Wave IR heater lamp , if the lamp length is over 1800mm, which we may recommend you use three support holders to have one hold in the middle of the twin tube heater. Usually we provide you 2 pcs per lamp for free.

Reflector 1. which can help to reflect the light radiated from the lamps to focus on the object, saving energy & inproving working efficiency 2. besides, you can adjust the reflector's grdient by the ajustable device at two sides to realze the best drying position 3. the longest reflector can be 3000mm, available for single tube and twin tube

Each infrared lamp bead can be controlled by the single-chip microcomputer to control its power output, so that the temperature of each area is close to same, and the temperature error can be ±1 °C, which greatly improves the quality of the product.

Twin tube IR emitter is made up of 8-shape high-purity clear quartz twin tube, each tube has Heating Coil of Tungsten material which runs in U shape in the tube which is filled with halogen gas.Power Density up to 150KW/m2 is achieved. Heating up and cooling down time is approximately one second. There are two standard sizes 11 mm x 23 mm and 15 mm x 33 mm in cross section for twin tube short wave IR radiators, and the maximum length available is 4000 mm

Fast response medium wave infrared emitters are heaters that fall between the short and standard medium-wave. Utilizing the best of both wavelength. Response times as fast as short wave, with a maximum power output of 120 kW/m2 and lengths up to 4 meters. The heaters is suitable for drying processes because of transferring heat at a medium wave spectrum (2-4micron) .

In addition to the standard emitters, we also design and manufacture emitters in all kinds of shapes. W shape emitter, Omega-type emitters, Bended tube-type emitters, Spiral-type emitters, U-type emitters, Round-type emitters, and other customized shapes emitters

Medium wave infrared heaters produce infrared waves of around 2.6-3.5um and operate at 500 – 1,300C degree. Because of their long life, medium wave quartz infrared heaters perform extremely well in continuous processes. Also it is slower in response to changes in process requirement as compared to the short-wavelength lamps and are slower to heat up and cool down. Single tube IR lamps but with only one side connection lead wire.

Short wave quartz infrared heaters are comprise finely coiled tungsten filament surrounded by a quartz glass and kinds of halogen gas. Twin tube IR emitter is made up of 8-shape high-purity clear quartz twin tube.Power Density up to 150KW/m2 is achieved. Heating up and cooling down time is approximately one second.
