Halogen Infrared Ruby Sleeved Heat Lamps comprise finely coiled tungsten filament surrounded directly by a 10mm diameter Ruby quartz tube. Thanks to the narrower diameter (10mm) than that of the classical Ruby sleeve (20mm) type, the size of your reflector and/or module can be more compactly designed, and the infrared heat is more efficiently transferred, whilst reducing visible glare. As no coating on the surface of the glass tube, this lamp brings you no peeling trouble to realize unchangeable low glare over its lifetime.
Linear quartz ruby jacketed infrared lamps are primarily used in space heating but also in other applications where a compact heat source is needed. Lead length is 220mm with fork terminal ends. Other applications include Catering, Livestock heating, Drying processes, Shrink Packaging, Laminating, etc.
Lamp Power
1100 Watts
Lamp Voltage
230 Volts
Overall Length
530 MM
Lighting Length
460 MM
Cap / Fitting
SK15s, Lead and Fork Terminal
Color
Ruby Red
Bulb Finish
Ruby Jacket
Cable
Teflon 200MM
Buring Position
Horizontal
Infrared Ruby Lamp gives benefits of:
Low glare stabilization (No peeling trouble): thanks to the technology without surface coating, low glare can be steadily maintained over a lifetime.
Long life: 5000h on average
High speed: within a second switch on.
High efficiency: more than 85% heat efficiency of full power
High power density: up to 100 W / cm
High controllability: neither ballast nor special circuits are necessary for basic usage.
No air draughts: because of radiation (similar to solar energy)
Clean and odorless: no risk of contamination over the environment or target object to be heated.
Extensive assortment: many types of voltage, wattage, length, base, wire harnesses, and universal burning position are available.
Flexible: special lamp designing service on demand is available.
Why QUICKLY?
The materials used for our lamps are of good quality approved UL testing
As a manufacturer of infrared lamps over 10 years history, and we have experienced workers, half of them have worked for us for over 5 years
We are a factory, so we can control the delivery date, material, and quality directly
For any exclusive-human damage within warranty time, we will deliver the replacements within 3-5 work days once confirming
Safe package to protect lamps from being broken during shipping
Various Payment methods like wire transfer, Paypal, western union
Shipping ways provided including DHL, FedEx, TNT, UPS, air, sea
we will provide you with the lamp’s holder free of charge ( 2 units clamps for 1 piece lamp)
FAQ
How to place the order? Let us know your required lamp specifications including lamp type, diameter, length, power, voltage, and reflector...then we send you the quotation, after payment, production will be started, then they will be shipped to your side once production finish.
Why is Quartz Glass the one main material? The choice of quartz glass is not a coincidence: this extraordinary material is totally transparent to IR radiation, can withstand constant working temperatures of more than 1000°C and it is resistant to chemical corrosion.
could you supply clamps for lamp installation? Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps is supplied freely by us.
Have an unusual design? Send us a drawing, sketch, or sample and we'll be happy to quote it. We specialize in small runs and custom designs but can be highly competitive on large orders as well.
How does your factory do quality control? " Quality is priority", we always keep paying more attention to QC from the material purchasing to the lamps' packing. Our product and company has gained CE, ROHS, and ISO9001.
Ruby IR lamps provide warmth without glare. They are ideal for people heating, as well as animal husbandry and paint drying. They are available as slim or jacketed types.
Quickly infrared ruby lamps comprise finely coiled tungsten filament surrounded directly by a 10mm diameter Ruby quartz tube. With no coating on the surface of the glass tube, this lamp brings you no peeling trouble to realize unchangeable low glare over a lifetime. They are ideal for industrial heating, as well as animal husbandry and paint drying.

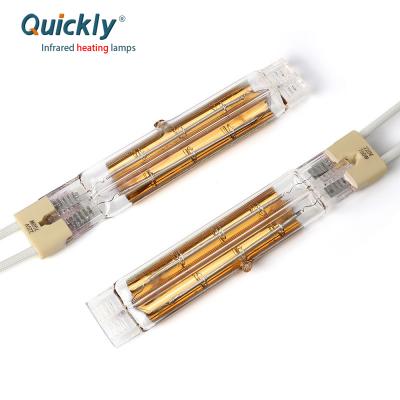

Fast medium wave infrared heaters can design twin tube IR emitters with different filament configurations.The Max. length is up to 4.0 meters and all heating lamp can be switched on and off within few seconds, converting more than 85% of input power into infrared heat.Quickly support quartz tube infrared lamp for different applications such as industry coating, plastic forming, automotive industry, glass making, spinning, solar PV, food baking, drying of printing inks, quick drying of primer and paint on furniture, printed circuit, and so on
Infrared heating is a kind of radiation heating. It spreads by a kind of infrared radiation (light)-- infrared light from material in the form of molecular (atomic) resonance absorption, so as to achieve the purpose of heating. It can be applied in many fields such as the heating process of industry coating, plastic forming, automotive industry, glass making, spinning, solar PV, food baking, drying of printing inks, quick drying of primer and paint on furniture, printed circuit, and so forth.
Our Infrared Heating Lamp can help you create virtually seamless joints for virtually any application, including: wearables, smart textiles, earbuds, cameras, speaker boxes, cellphones and accessories, tablets, ink and toner cartridges, medical devices and instruments and more. Our process uses no adhesives, so you get a clean, reliable join in seconds, lowering manufacturing costs while accelerating production.
Advantages with infrared welding:
1.Contactless heat transmission, no material adheres to the heat source
2.Infrared emitters heat the surface of plastics within seconds
3.Infrared preheating element can be precisely shaped to follow edges, rims and contours and heat these areas specifically
4.Infrared heating lamp heat selectively and reproducibly, which allows automation of the processes
This Item is mainly used for Twin tube Twin Tube Medium Wave IR heater lamp , if the lamp length is over 1800mm, which we may recommend you use three support holders to have one hold in the middle of the twin tube heater.
Usually we provide you 2 pcs per lamp for free.
Infrared heating is the best choice for semiconductors processing as IR has rapid heating and cooling abilities which means the elimination of heating overspill as well as significant energy savings. No contact is needed infrared can operate in a vacuum, within a gas flow or in the air.
