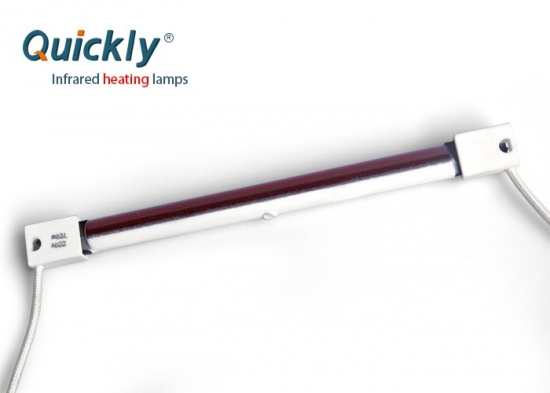

Ruby Silm Infrared Lamps comprise finely coiled tungsten filament surrounded directly by a 10mm diameter Ruby quartz tube, available on different powers. voltages, lengths. The ruby tube design reduces the glare of the halogen light and so is better for the eyes. Infrared ruby lamps can be mounted vertically or horizontally and have a long-lasting life of 5000hrs. They can convert virtually all the electrical power into heat hardly any energy is wasted and can be switched on/off, and the heat output is instant.
Infrared Ruby Lamp gives benefits of:
Low glare stabilization (No peeling trouble): thanks to the technology without surface coating, low glare can be steadily maintained over a lifetime.
Long life: 5000h on average
High speed: within a second switch on.
High efficiency: more than 85% heat efficiency of full power
High power density: up to 100 W / cm
High controllability: neither ballast nor special circuits are necessary for basic usage.
No air draughts: because of radiation (similar to solar energy)
Clean and odorless: no risk of contamination over the environment or target object to be heated.
Extensive assortment: many types of voltage, wattage, length, base, wire harnesses, and universal burning position are available.
Flexible: special lamp designing service on demand is available.
Applications of quartz infrared lamps
Paint drying in the body shop
Breeding animals
Coil coating
Outdoor and indoor space heating
And various kinds of industrial heating processes.
Why QUICKLY?
The materials used for our lamps are of good quality approved UL testing
As a manufacturer of infrared lamps over 10 years history, and we have experienced workers, half of them have worked for us for over 5 years
We are a factory, so we can control the delivery date, material, and quality directly
For any exclusive-human damage within warranty time, we will deliver the replacements within 3-5 work days once confirming
Safe package to protect lamps from being broken during shipping
Various Payment methods like wire transfer, Paypal, western union
Shipping ways provided including DHL, FedEx, TNT, UPS, air, sea
we will provide you with the lamp’s holder free of charge ( 2 units clamps for 1 piece lamp)
FAQ
How to place the order? Let us know your required lamp specifications including lamp type, diameter, length, power, voltage, and reflector...then we send you the quotation, after payment, production will be started, then they will be shipped to your side once production finish.
Why is Quartz Glass the one main material? The choice of quartz glass is not a coincidence: this extraordinary material is totally transparent to IR radiation, can withstand constant working temperatures of more than 1000°C and it is resistant to chemical corrosion.
could you supply clamps for lamp installation? Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps is supplied freely by us.
Have an unusual design? Send us a drawing, sketch, or sample and we'll be happy to quote it. We specialize in small runs and custom designs but can be highly competitive on large orders as well.
How does your factory do quality control? " Quality is priority", we always keep paying more attention to QC from the material purchasing to the lamps' packing. Our product and company has gained CE, ROHS, and ISO9001.
Ruby IR lamps provide warmth without glare. They are ideal for people heating, as well as animal husbandry and paint drying. They are available as slim or jacketed types.

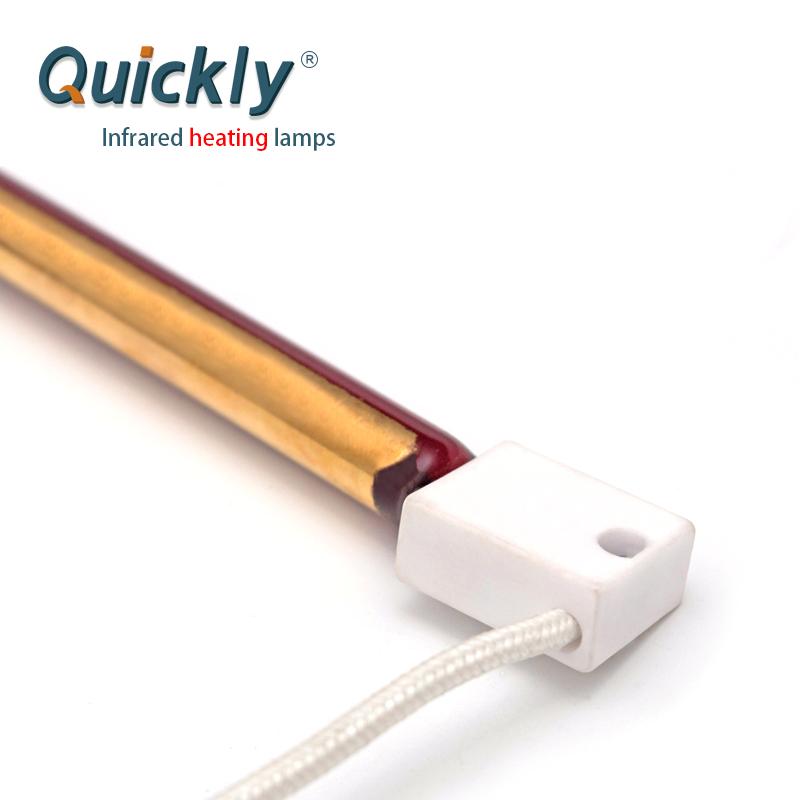

Quickly infrared ruby lamps comprise finely coiled tungsten filament surrounded directly by a 10mm diameter Ruby quartz tube. With no coating on the surface of the glass tube, this lamp brings you no peeling trouble to realize unchangeable low glare over a lifetime. They are ideal for industrial heating, as well as animal husbandry and paint drying.
Reflector
1. which can help to reflect the light radiated from the lamps to focus on the object, saving energy & inproving working efficiency
2. besides, you can adjust the reflector's grdient by the ajustable device at two sides to realze the best drying position
3. the longest reflector can be 3000mm, available for single tube and twin tube
circular round shaped short wave quartz infrared heaters are comprise finely coiled tungsten filament surrounded by a quartz glass and kinds of halogen gas. Circular round short wave infrared lamps heating element for plastic welding.
Fast medium wave infrared heaters can design twin tube IR emitters with different filament configurations such as single side connection cable and two sides connection cable, one heating channel and two heating channels. The Max. length is up to 4.0 meters and all the fast medium wave IR heat lamps can be fixed white ceramic or gold reflector directly on the quartz tube.
Whether you're looking to replacement for your current production line or start a new heating project, we will work with you to develop and design an infrared emitter to your needs.
No matter what material your screen printing on or how many color applications you need, infrared heat is the ideal heat to dry your screen printing for a variety of reasons, including:
IR heats only the surface, minimizing potential damage to your products. It can be targeted exactly.
Infrared heat is ‘instant on,’ reaching the desired temperature almost instantly. There’s no cool-down period either.
Infrared drying systems can be set up with both conveyor belts for mass production and for flash drying handling one unit at a time.
Infrared heat uses less energy than other heating methods.
