Tungsten Filament Ruby Infrared Emitters without glare

Low glare stabilization, constant color throughout life, choice of R7s and SK15 ceramic end base

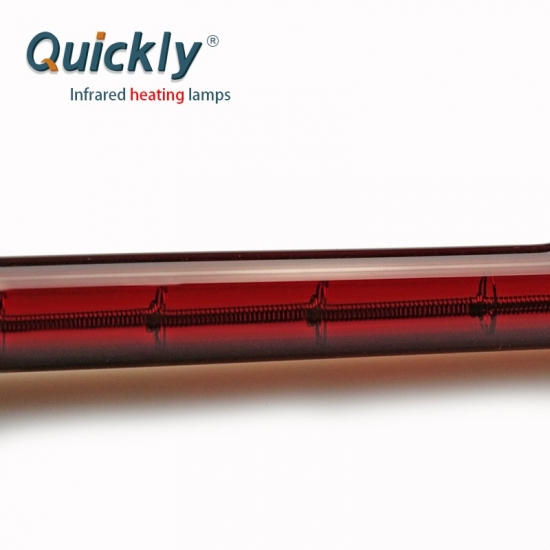

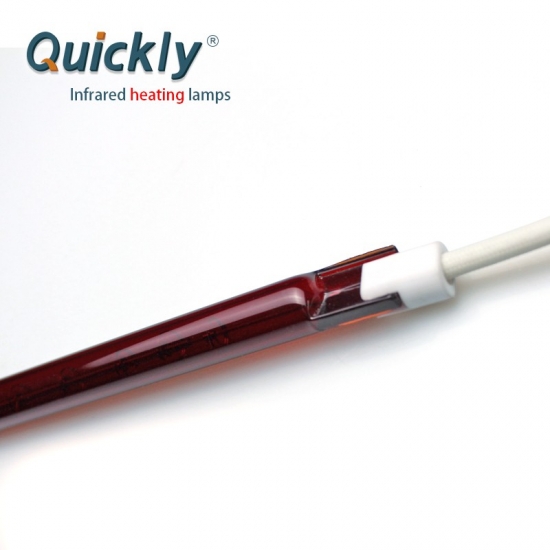

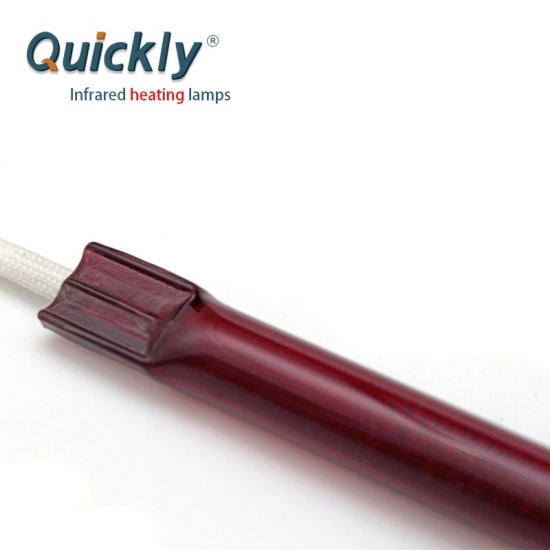

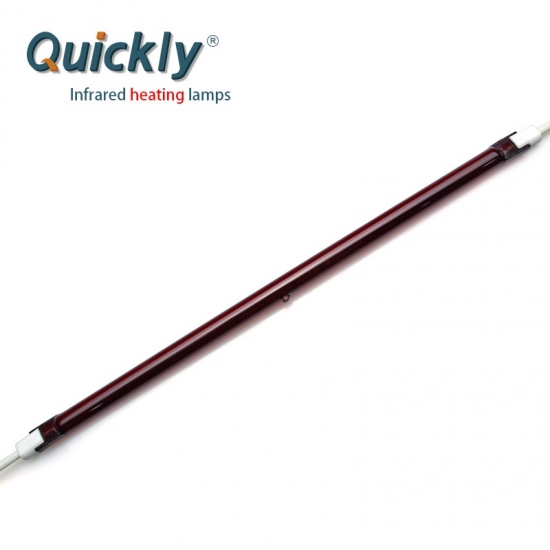

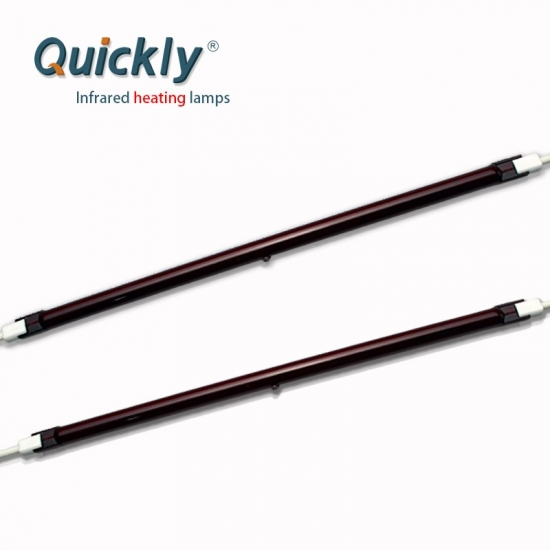

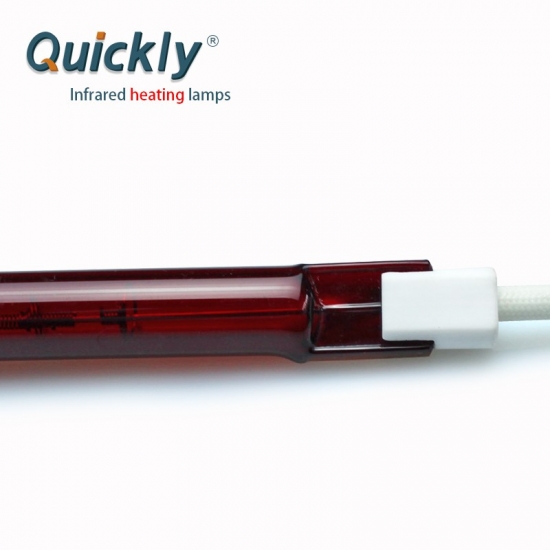

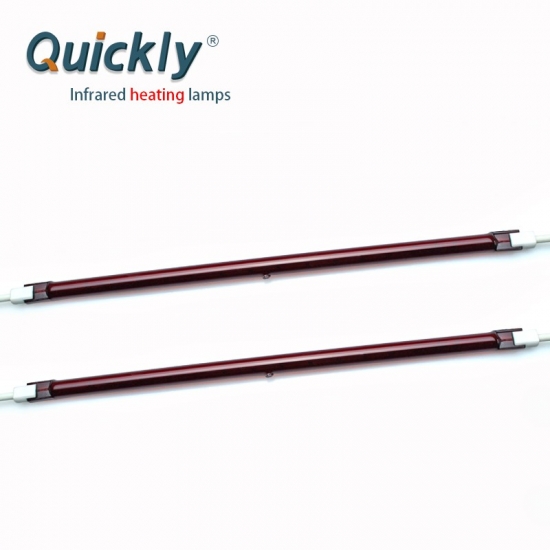

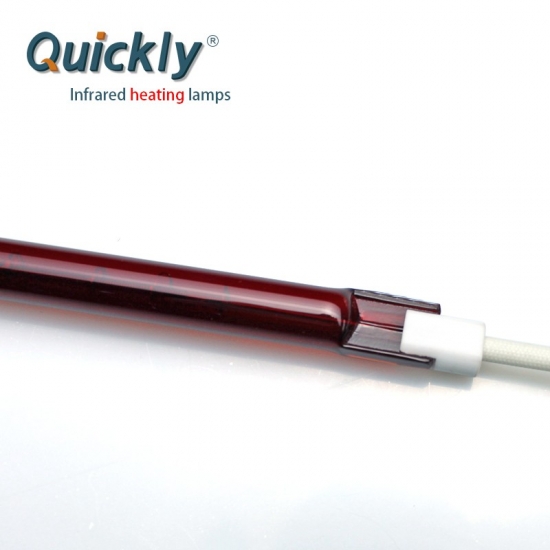

Ruby infrared lamps are made up of ruby quartz tube and tungsten filament, it is vacuum lamp, they are available as slim or jacketed types.

Quickly infrared ruby lamps comprise finely coiled tungsten filament surrounded directly by a 10mm diameter Ruby quartz tube. With no coating on the surface of the glass tube, this lamp brings you no peeling trouble to realize unchangeable low glare over a lifetime. They are ideal for industrial heating, as well as animal husbandry and paint drying.

Fast response medium wave infrared emitters have same product processing as short wave infrared lamps, made up from coiled tungsten filament and surrounded by a quartz glass and kinds of halogen gas. It belongs to vacuum lamp. It can be made into single round tube and twin tubes based on the working situation.

Twin tube IR emitter is made up of 8-shape high-purity clear quartz twin tube, each tube has Heating Coil of Tungsten material which runs in U shape in the tube which is filled with halogen gas.Power Density up to 150KW/m2 is achieved. Heating up and cooling down time is approximately one second. There are two standard sizes 11 mm x 23 mm and 15 mm x 33 mm in cross section for twin tube short wave IR radiators, and the maximum length available is 4000 mm

Short-Wave Infrared emitters produce infrared waves of around 0.75 – 1.4 microns in wavelength and operate at high temperatures above 1,300 – 2,6000C. Since these wavelengths have higher frequencies, they tend to be more transmissive and reflective.The high efficiency of this technique, however, not only follows from the absorption properties of the materials to be heated, but also in conjunction with the atmosphere.

Medium wave single tube infrared radiators are used in a wide range of industrial processes and offer a truly efficient and economical mode of heating. QUICKLY single tube medium wave IR emitters design with the gold reflector as standard, using high purity quartz, gives the user the best in infrared heating technology.

Quickly manufactures PET blow moulding infrared lamps element in virtually any length,Wattage,and Voltage combination for new applications or direct replacement into existing equipment.By using our IR Emitters,our customers experience the following advantages: 1、Very cost effective 2、Long life 3、Fast delivery time 4、Clear or Translucent quartz 5、White or gold reflector 6、Vertical and/or horizontal operation 7、Fast heat up and cool down 8、Mechanical durability:  Good 9、Multiple end-cap terminations
