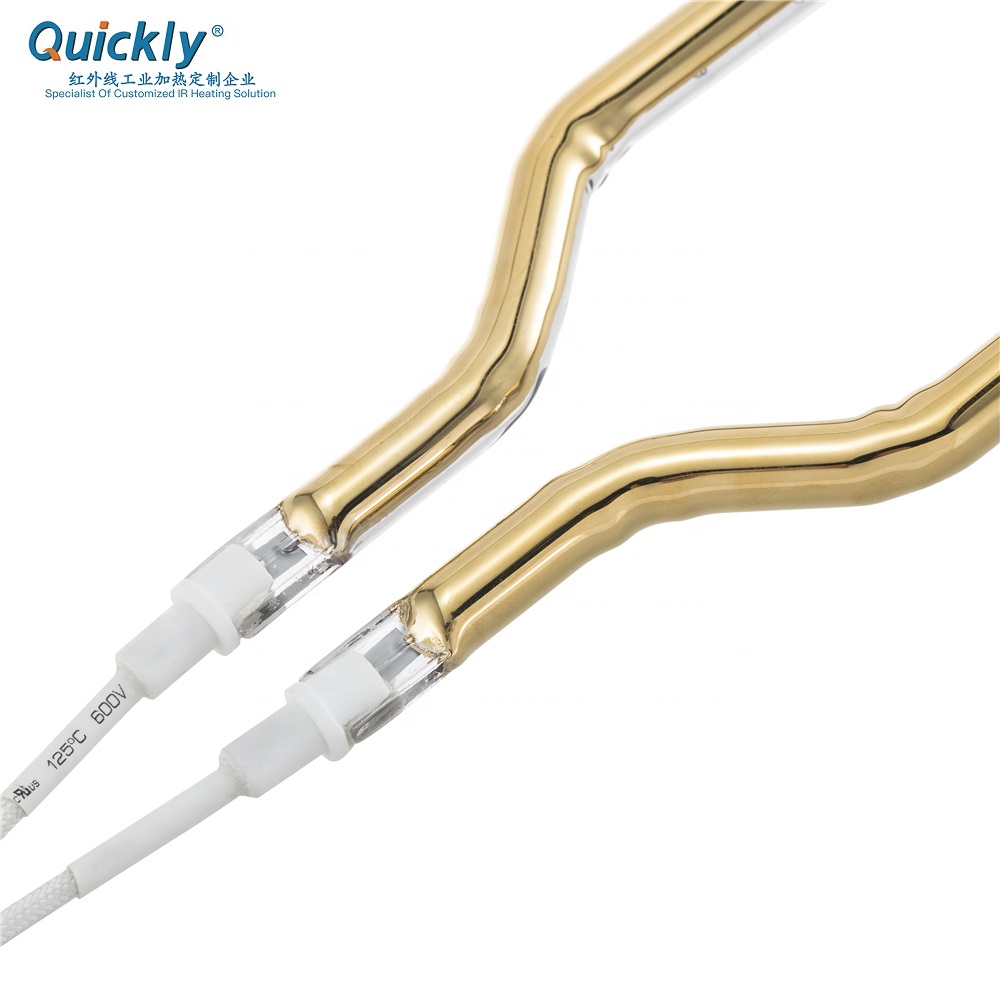

3D Contours Gold Reflector Quartz Halogen Infrared Heaters Heating Element for IR Plastic Welding Systems

Quick introduction

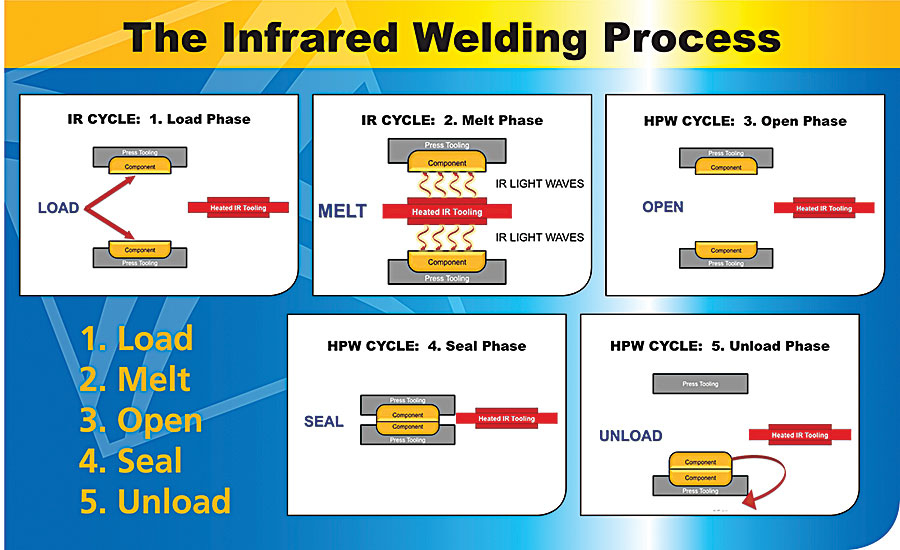

With the infrared welding process, energy from the IR process is absorbed by the material and transformed into heat, resulting in the melting of the surface layer and allowing for plastic components to be joined by pressing them together. The heat is transferred without contact, and the heat input is fast, specific and energy-efficient.

Benefits of Infrared Welding:

1.Contactless heat transmission, no material adheres to the heat source

2.Infrared Element heat the surface of plastics within seconds

3.Infrared Heaters can be precisely shaped to follow edges, rims and contours and heat these areas specifically

4.Infrared Lamp Tube heat selectively and reproducibly, which allows automation of the processes

Infrared Heating Lamp Features:

IR heating radiation temperature approx. 1.800 - 2.400°C

Short wave IR heaters lamps can reach operating temperature within 1s

Power up to 200 KW/m²

Short cycle times, typical heating period about 12s

Greater distance to material possible, low risk of fire

Flexible heating via individual control of single radiator units

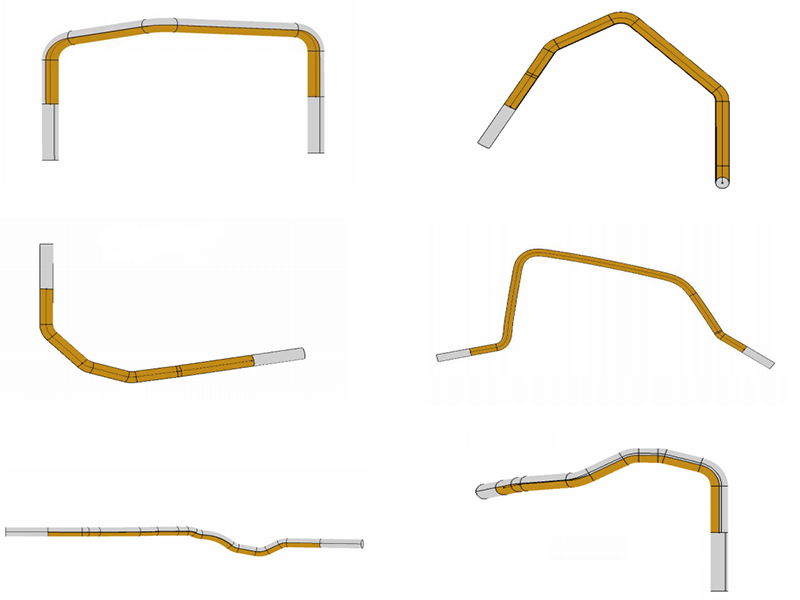

Fixed contour, standard or special design, e.g. 3D contours

Different wave lengths 0,78 μm to 2 μm

Energy direction transmitters can be used for tolerance adjustments

These Infrared Lamps are available in numerous standard lengths, Wattages, and Voltages for new applications or direct replacement for existing equipment. Contact us for more customized information!

Products Details

3D Contours Gold Reflector Quartz Halogen Infrared Heaters Heating Element for IR Plastic Welding Systems

Industrial ApplicationsProduction Process

About QUICKLY

Anhui Quickly Industrial Heating Technology Co., ltd is a family of privately-owned companies focused on the development of infrared heating technology which dramatically reduces the time and space required for industrial heating and drying processes and provides quantum leaps forward in efficiencies for our global customers.QUICKLY has experience in meeting the needs of a broad range of industries. Applications include paper, printing, textiles, non-woven products, liquid coating, powder coating, adhesives, laminating, welding, thermoforming, and annealing. We will continue to provide excellent process heating solutions for today's industrial needs, and for the challenges of tomorrow.QUICKLY locates in Hefei, Anhui, China,with more than 70 Skilled workers with over 5 years of working experience on average. Dozens of our production employees have been in QUICKLY since the company was first established until today.

Why Choose Quickly

Our Quartz Infrared Heaters are under standard in CE & ROHS, we have strict quality control to make sure each IR lamp is perfect!By the way,we support the best service for you:
A:Sample Service
Some samples are free of charge, buyer shoulder the fright cost.
B:Customized Service
1. All of our Infrared Heating Emitters are customized according to your unique practical request, professional technicians do one-to-one service for you and can customize 1pc Infrared Heater for your quality testing at the beginning.
2. We offer OEM services, we can print your logo on Infrared heating lamps as your requirements.
C:After-sale Service
Warranty Time of Short wave Infrared heat lamp: 5,000 hours
Warranty Time of Carbon Fiber Infrared heat lamp: 10,000 hours
Warranty Time of Medium wave Infrared heat lamp: 20,000 hours
During the warranty time, any non-man-made quality issue, once confirmed, we will sent the new replacement immediately without any charge.
